Aluminum truss mast M500
The M500 series aluminum truss pole, with a segment length of 4 meters, is a general-purpose product — it allows for easy movement along the structure and offers increased rigidity compared to the M400, resulting in a higher load-bearing capacity. M500 series masts allow for the installation of up to 1 square meter of antenna surface area at their top in wind and icing Zone I (for which they are designed). The maximum height is 36 meters. The kit includes 4-meter aluminum segments, an aluminum mast base with two degrees of freedom for on-site installation, a 1-meter lightning arrester, installation bolts, guy wires, and accessories (shackles, turnbuckles, thimbles).
Goes well with
Only relationships confirmed in the descriptions and catalog.
Click an item in the illustration or a category below.
The Summit and the Lightning Strike
Mast top: lightning protection cone and antenna adapter.
Crowns and separation platforms
They are spaced apart from each other.
Antenna brackets
Brackets for flat antennas and radio lines.
Lashings
Rope marks and torsional bracing of the mast.
Security Measures
Anti-climb protection and fall arrest system.
Other items for this product
Mounted on
MB-1MB-1 Mast Foundation System (buried base)masts up to 40 m; 4 bolts for the swing base included
GA-1GA-1 Mast Foundation System (buried anchor)anchoring of guy wires; masts up to 40 m
EF series precast concrete foundationsEF 115/200 ≤40 m, EF 150/200 ≤60 m, EF 160/230 ≤70 m, EF 180/250 ≤90 m
Ground Screw GS SeriesNo size chart for masts
Technical Specifications
Technical Information
01Design
- Width at the top
- 500 mm
- The height of a single segment
- 4 m
- Segment weight
- Approximately 11.7 kg to 15.7 kg - depending on the height of the mast /heavier segments closer to the foot/
- Size of curb pipes
- ø35×1.5 / ø35×2 – zależnie od wysokości
- Lashings
- Linka stalowa ocynkowana ø4mm /ø5 mm z akcesoriami - zależnie od wysokości
- Level I of the exhaust system
- up to 8 m
- 2nd level of lashings
- up to 16 m
- Level III Exhausts
- up to 24 m
- IV levels of lashings
- up to 28 m
02Materiał i wykonanie
- Material
- AW6060/6063 T6
- Size of horizontal grating pipes
- ø20×1.5, ø20×2 – zależnie od wysokości
- diagonal lacing
- ø20×1.5, ø20×2 – zależnie od wysokości
- Welding technique
- TIG
03Montaż
- Joining Segments
- Kołnierzowe, śruby M8×25, 9 szt. na segment
- Mast Mounting
- Articulated with two degrees of freedom
TECHNICAL DOCUMENTATION
Documents
- 19
- CAD
- in response to a request
- Access
- without a form
M500-7Example of an A-type antenna installation
M500-7Example of B-type antenna installation
M500-10Standard
M500-123-way pull-outs, standard
M500-12with a slotted lightning protection cone—bracing in 3 directions
M500-12with a slotted lightning protection cone—4-way guy wires
M500-15with an AM1 adapter
M500-15with a separation ring and anti-twist rigging
M500-14with an AM1 adapter
M500-16with the AM1 adapter and a sample antenna set
M500-16with an AM1 Standard adapter
M500-16with a standard lightning protection cone
M500-183x120
M500-24with a Standard-style slotted lightning protection cone
M500-25EN Standard
M500-28EN Standard
M500-303-way vents
M500-304-way stretch
M500-354-way stretch- DWG
STEPCADDrawing or 3D model available upon request
Description
The M500 series aluminum truss mast, with a segment length of 4 meters, is a general-purpose product — it allows for easy movement along the structure and offers increased rigidity compared to the M400, resulting in a higher load-bearing capacity. M500 series masts allow for the installation of up to 1 square meter the surface of the antennas at their top. The maximum height is 36 meters.The set includes 4-meter aluminum segments, an aluminum mast base with two degrees of freedom for on-site installation, a 1-meter lightning arrester, installation screws, guy wires with accessories (shackles, turnbuckles, thimbles).

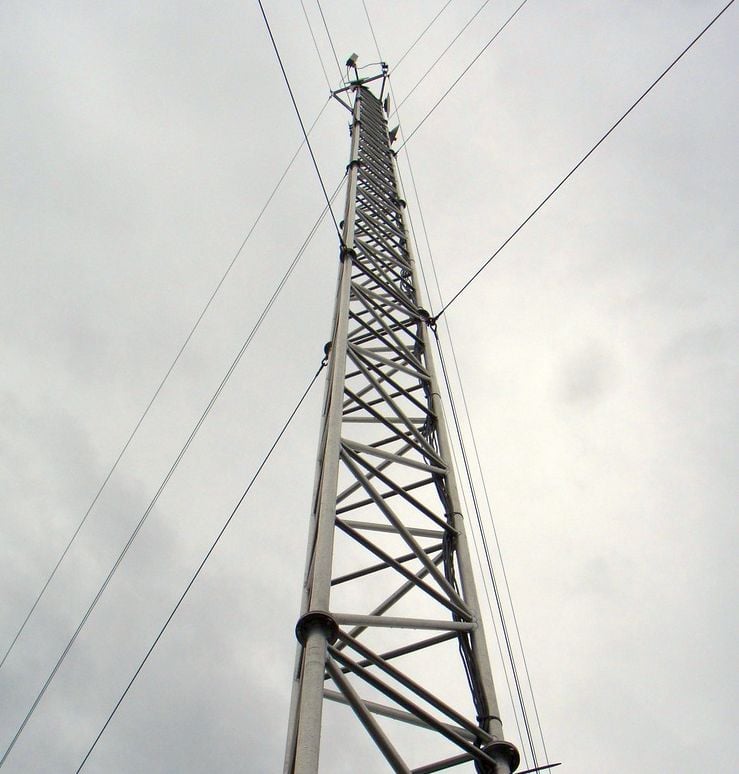

Projects and Photos
