Flat antenna bracket, WM series
An antenna mount designed as a more affordable alternative to the WRM series; a simple design for antennas that do not require highly precise directional performance.
Goes well with
Only relationships confirmed in the descriptions and catalog.
Accessories for: M1000 aluminum lattice mast. Click on the item in the diagram.
The Summit and the Lightning Strike
Mast top: lightning protection cone and antenna adapter.
Crowns and separation platforms
They are spaced apart from each other.
Antenna brackets
Brackets for flat antennas and radio lines.
Exhausts
Rope marks and torsional bracing of the mast.
Work platforms and work platforms
Work stations for working at heights, both outside and inside the shaft.
Safety flaps
Hatches in the shaft, above the ladder.
Security Measures
Anti-climb protection and fall arrest system.
Mounted on
Aluminum lattice mast M1000WM1000
T1000 series aluminum telecommunications lattice towerWM1000
WBTK-20Tower on container T1000-20 WBTK-20T1000 Series Tower Accessories
Aluminum lattice mast M750WM750
Aluminum lattice mast M500WM2550
T500 series aluminum telecommunications lattice towerAM500, TEC500, KM500, WM2550, WRM500, WADM500
Aluminum lattice mast M250WM2550
Aluminum lattice mast M400WM2550Technical Specifications
| Parameter | WM2550 | WM750 | WM1000 |
|---|---|---|---|
| Height | 760mm | 980mm | 1000 mm |
| Distances from the mast | 300mm | 500mm | 700mm |
| Weight | 1.0 kg | 1.7 kg | 3.3kg |
| Antenna mounting diameter | diameter 50 mm | diameter 60 mm | diameter 60 mm |
Description
An antenna mount designed as a more affordable alternative to the WRM series; a simple design for antennas that do not require highly precise directionality. Can be installed at any height; installation clamps are included. Made of AW6063T6 aluminum.

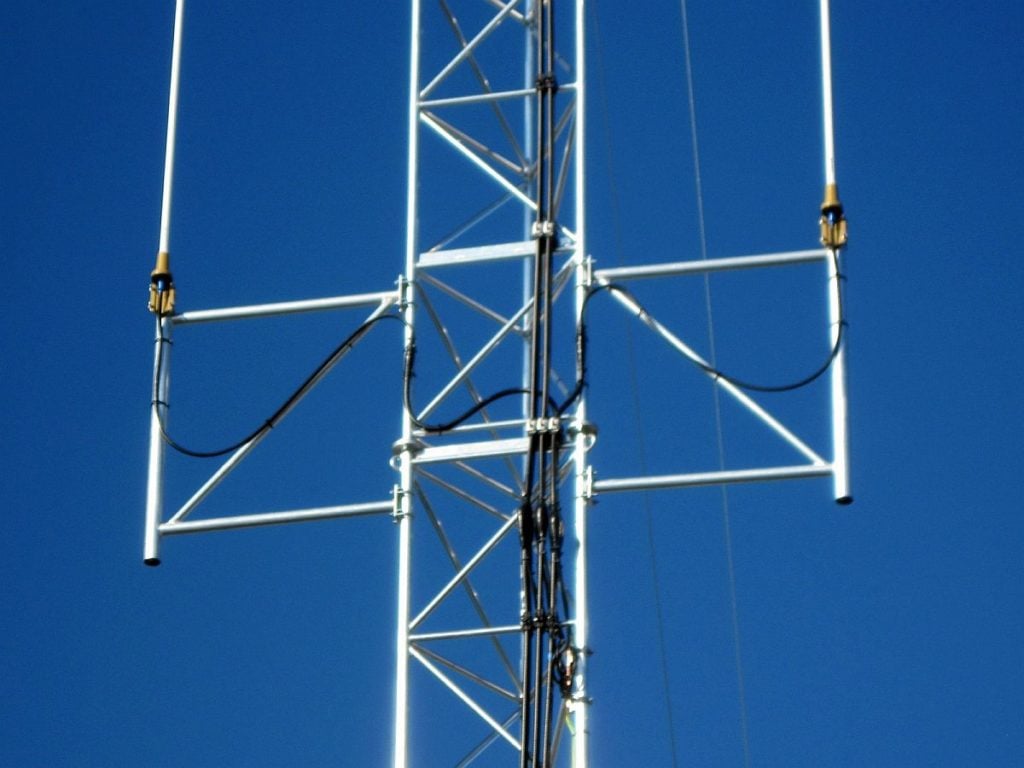

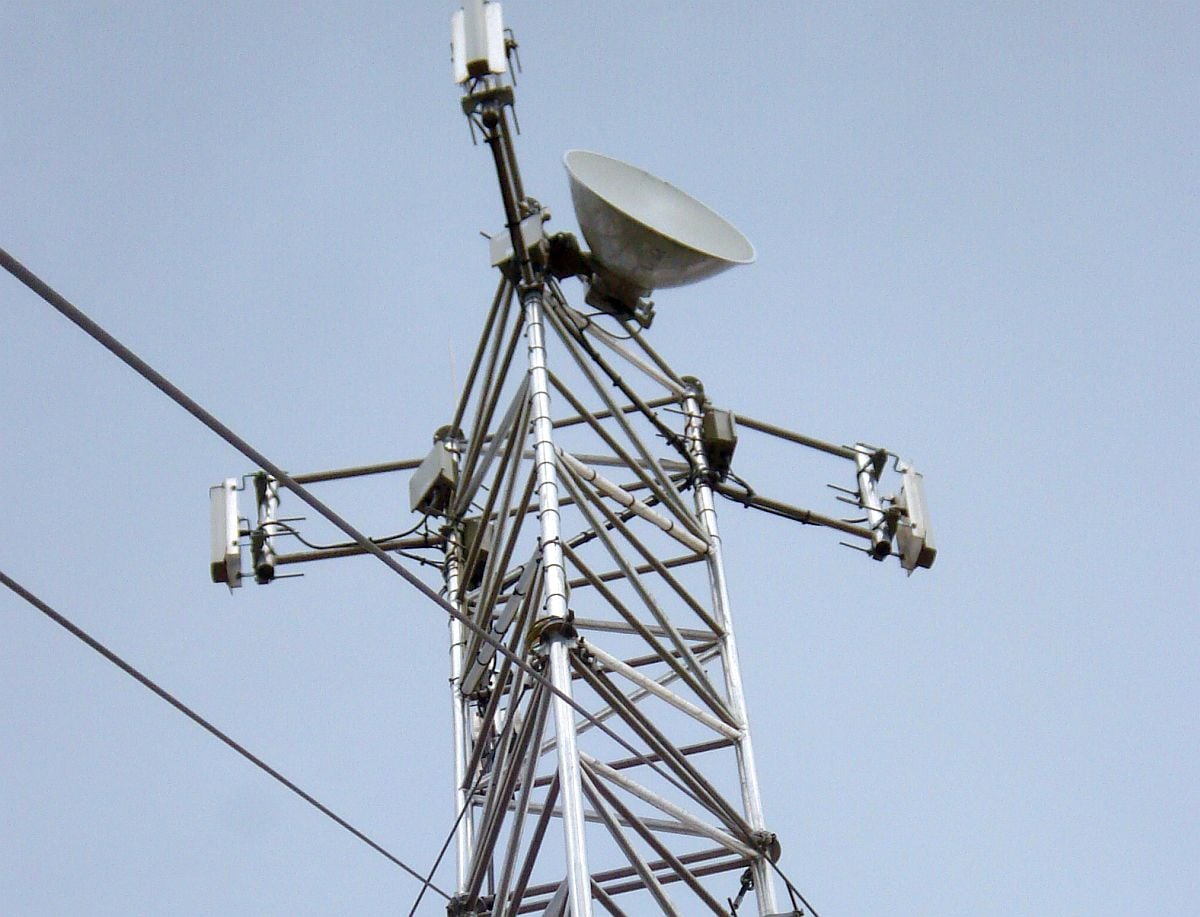

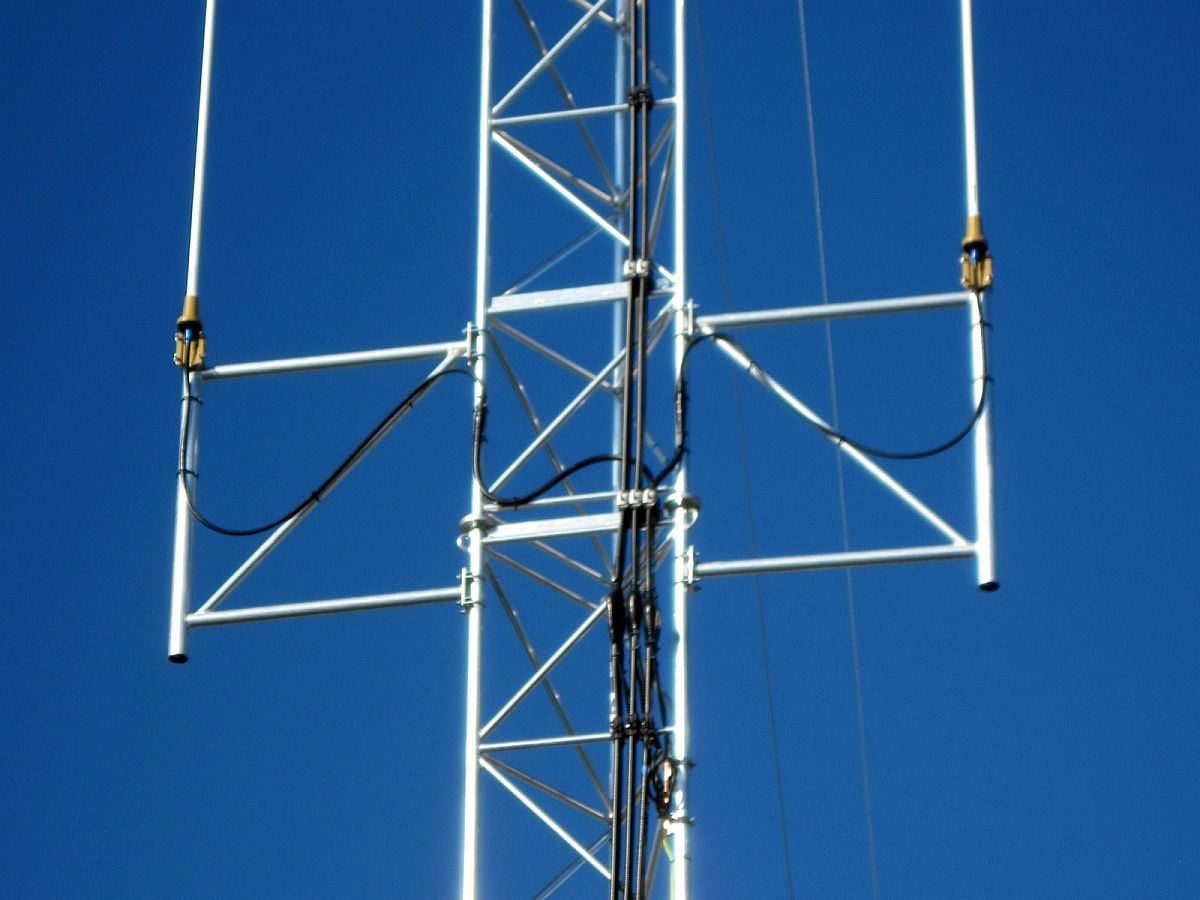

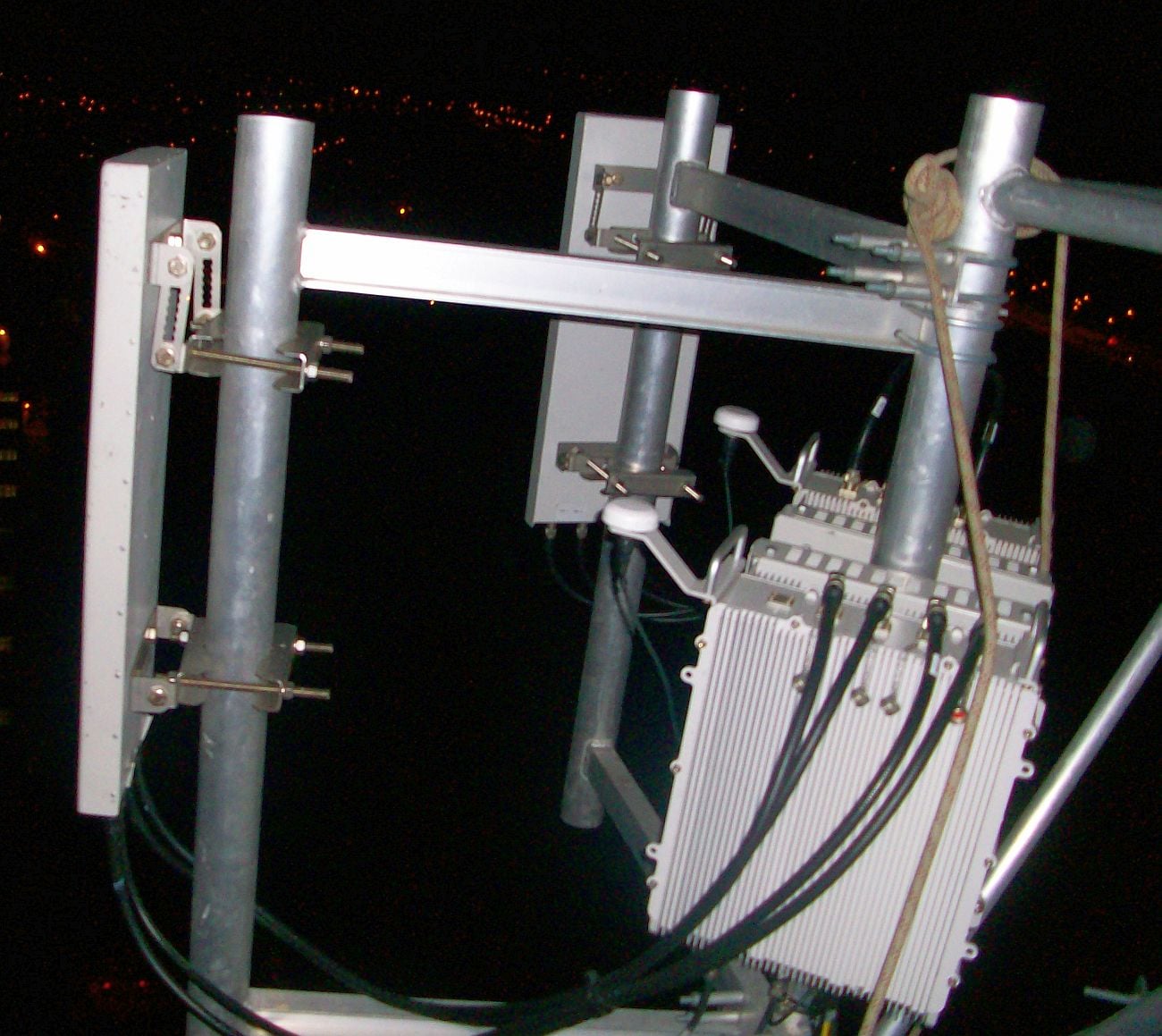

Projects and Photos
