SKC-STOP anti-fall system
SKC-STOP is an excellent fall arrest (safety) system for people working on a mast or tower.
Goes well with
Only relationships confirmed in the descriptions and catalog.
Accessories for: M1000 aluminum lattice mast. Click on the item in the diagram.
The Summit and the Lightning Strike
Mast top: lightning protection cone and antenna adapter.
Crowns and separation platforms
They are spaced apart from each other.
Antenna brackets
Brackets for flat antennas and radio lines.
Exhausts
Rope marks and torsional bracing of the mast.
Work platforms and work platforms
Work stations for working at heights, both outside and inside the shaft.
Safety flaps
Hatches in the shaft, above the ladder.
Security Measures
Anti-climb protection and fall arrest system.
Mounted on
WBTK-20Tower on container T1000-20 WBTK-20T1000 Series Tower Accessories
Aluminum lattice mast M250SYS 10…60 by height
Aluminum lattice mast M400SYS 10…60 by height
Aluminum lattice mast M500SYS 10…60 by height
Aluminum lattice mast M750SYS 10…60 by height
Aluminum lattice mast M1000SYS 10…60 by height
T1000 series aluminum telecommunications lattice towerT1000 with an internal ladder
T500-30-STECOT500-30 Economical lattice steel toweroptional feature
Steel Tower T1000-50 Steel EconoSKC-Securo
Technical Specifications
Specifications
- Maximum rope length in one segment 10 m
- The maximum length of the entire system is not limited
- Can be used in any type of AluPro M250 to M1000 aluminum mast
- Can be used in the T1000 aluminum tower (with internal ladder)
Description
SKC-STOP is an excellent fall arrest (safety) system for people working on a mast or tower. It prevents falls using an inertia-based brake. It does not restrict movement or distract the user. It requires the use of a work or climbing harness. Our solution is based on the integration of components from a reputable company CT Climbing Technology.
Included in the set

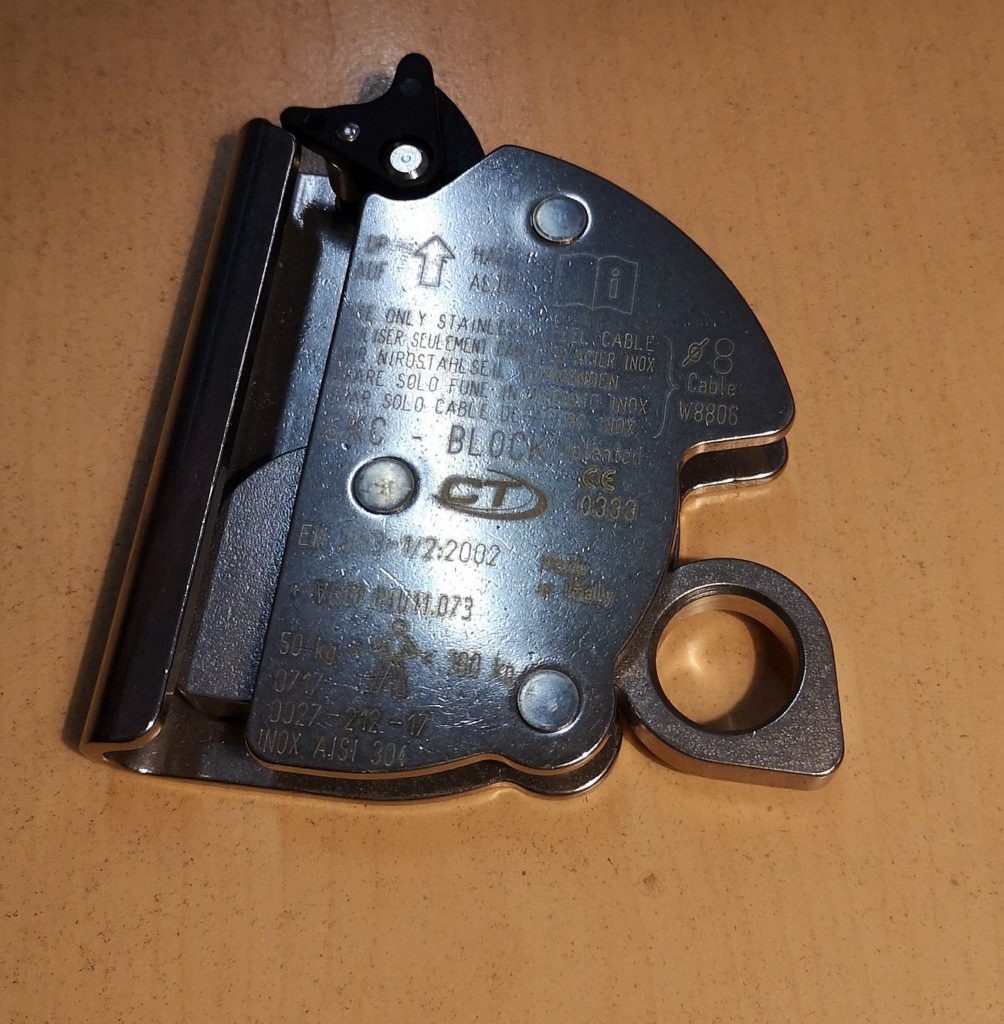

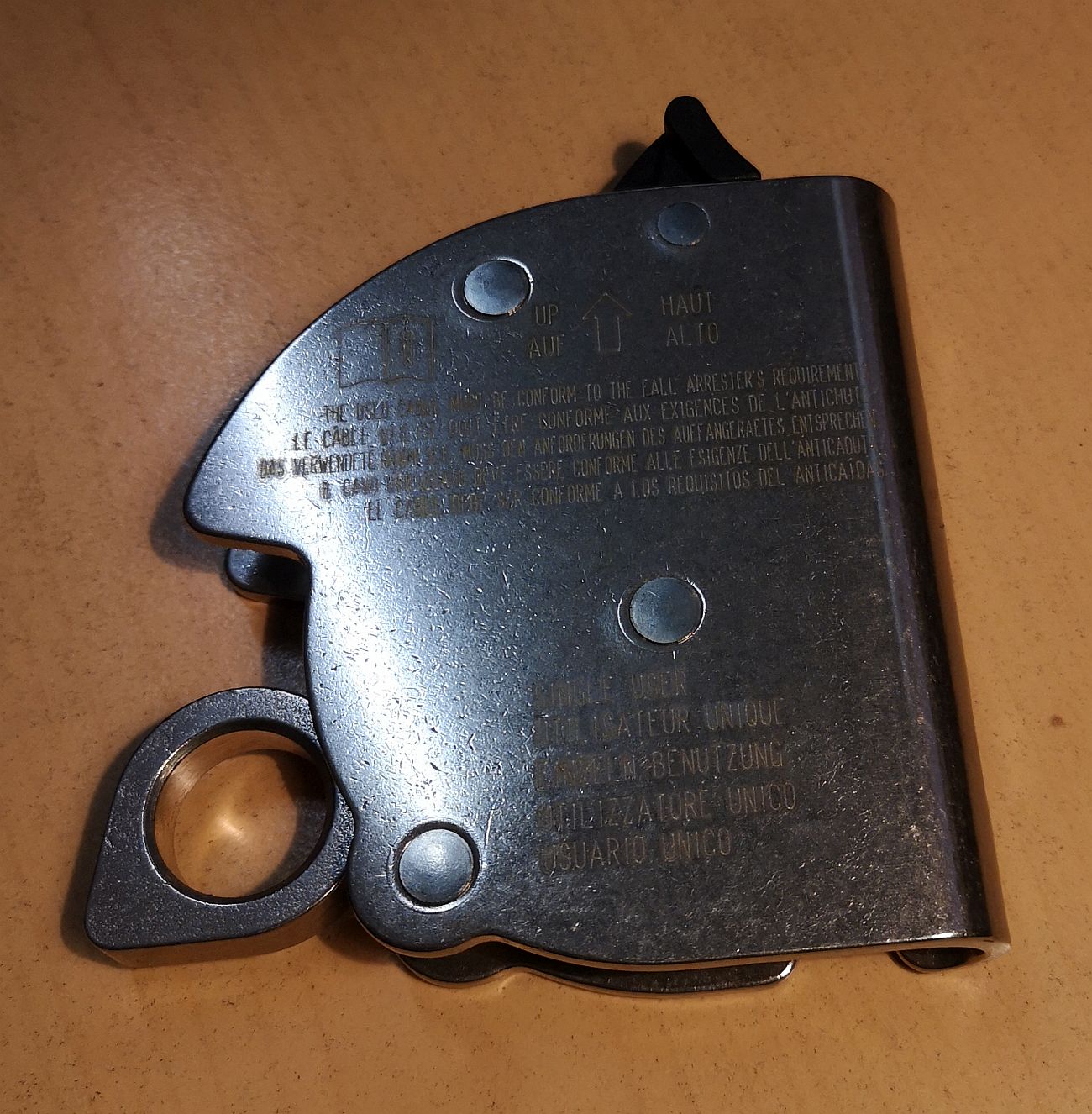

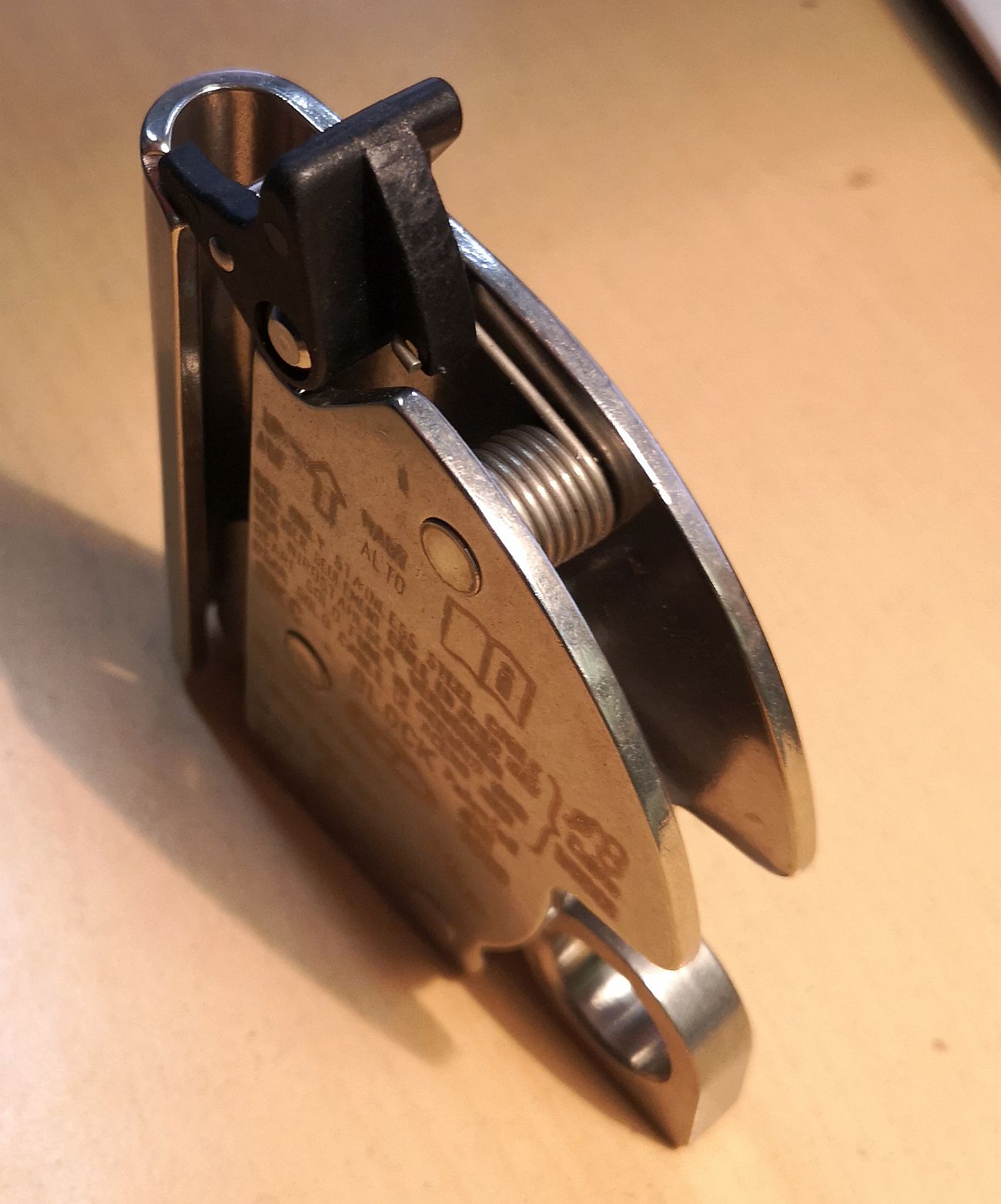

- Securo safety brake (1 piece)
- Set of handles and screws
- Rope catcher every 10 meters of rope

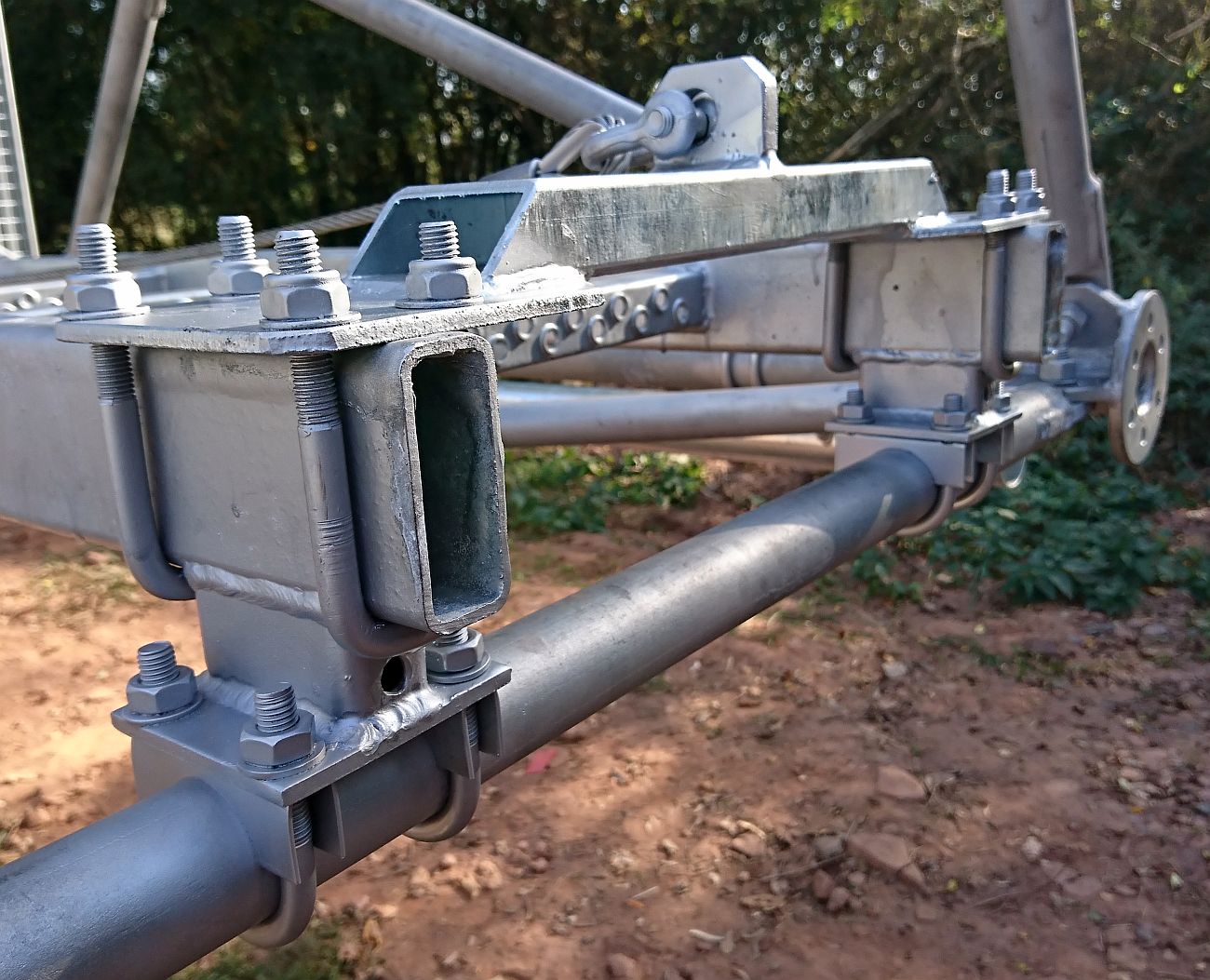

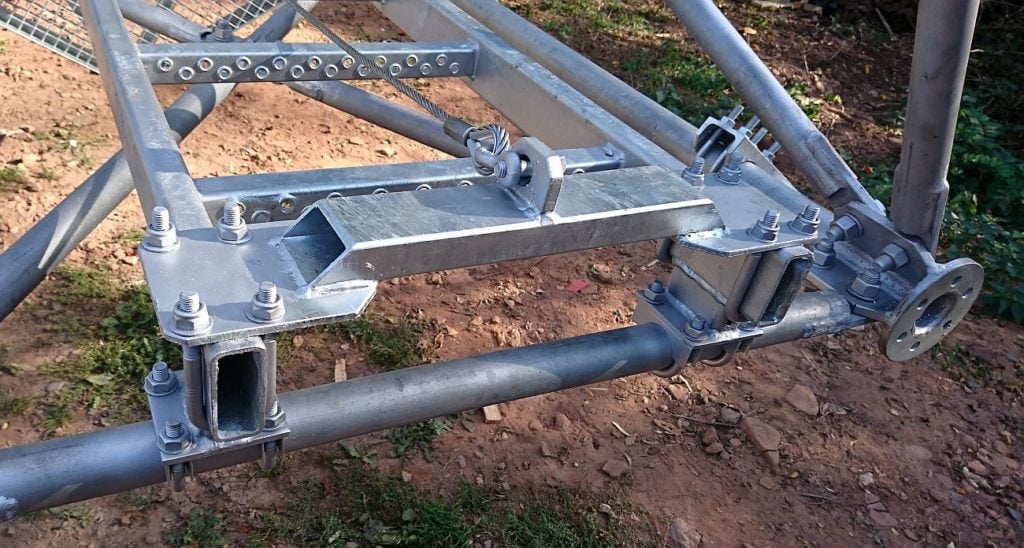

- Upper crossbar (1 piece)
- Lower ladder holder (1 piece)

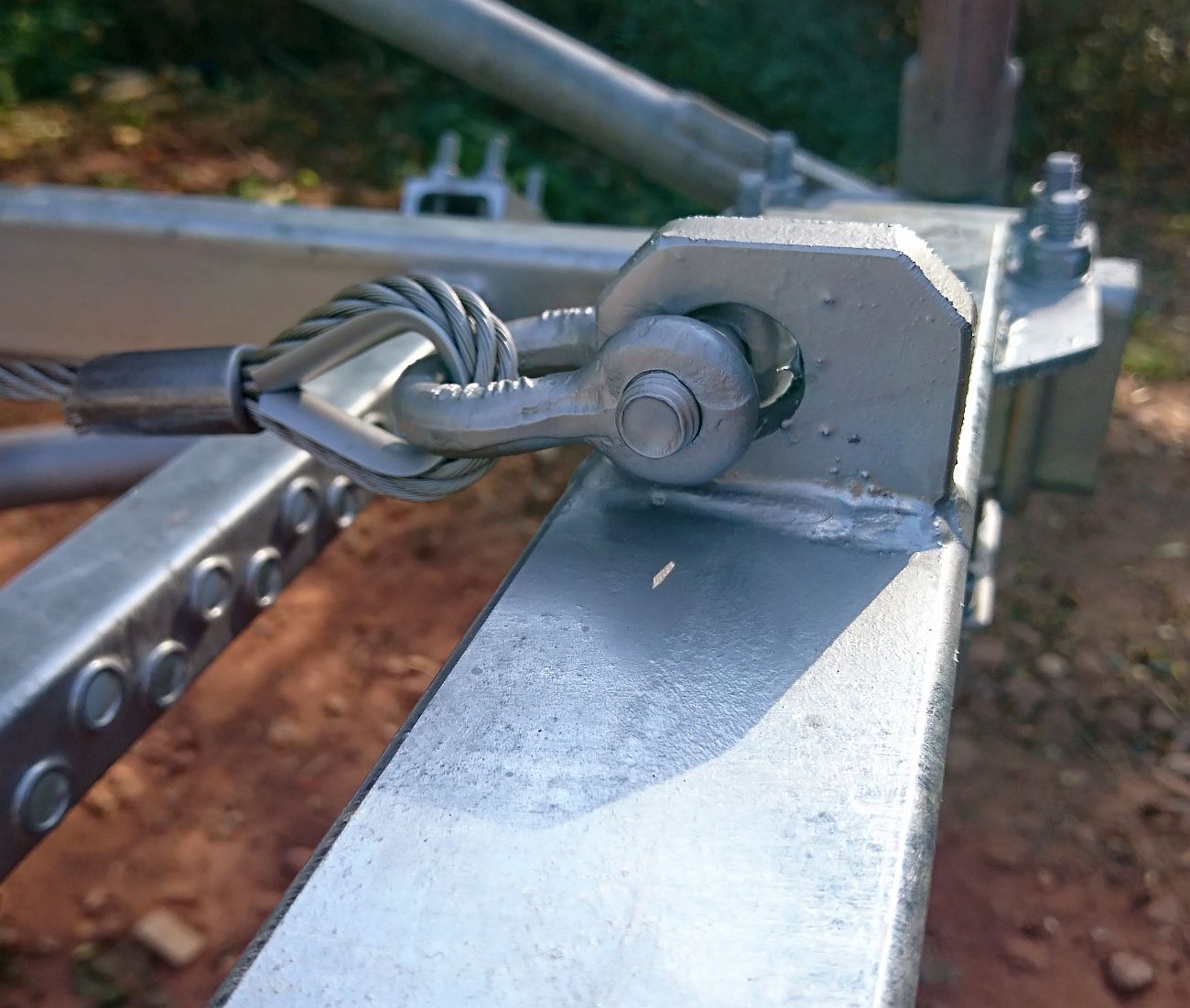

- Stainless steel rope 8 mm
Projects and Photos
