Rope brand (guiding) U series
Rope brand for aluminum masts in the M250 to M1000 series.
Goes well with
Only relationships confirmed in the descriptions and catalog.
Accessories for: M1000 aluminum lattice mast. Click on the item in the diagram.
The Summit and the Lightning Strike
Mast top: lightning protection cone and antenna adapter.
Crowns and separation platforms
They are spaced apart from each other.
Antenna brackets
Brackets for flat antennas and radio lines.
Exhausts
Rope marks and torsional bracing of the mast.
Work platforms and work platforms
Work stations for working at heights, both outside and inside the shaft.
Safety flaps
Hatches in the shaft, above the ladder.
Security Measures
Anti-climb protection and fall arrest system.
Technical Specifications
| Parameter | UXM2550 [mm] | UXM7510 [mm] |
|---|---|---|
| Guy rope diameter | 4–6 | 6–10 |
| Width | 100 | 100 |
| Length | 100–320 | 200–450 |
| Wed. open under the shekels. | fi 16 | fi 20 |
Description
Rope clamp for aluminum masts in the M250 to M1000 series. The clamp is made of AW6063T6 aluminum. The number of holes depends on the number of guy wire levels of the ordered mast. We recommend using 3-hole brackets for masts with 2 guy wire levels, 4-hole brackets for masts with 3 levels, and so on for masts with more guy wire levels. This solution significantly simplifies installation and maintenance (the spare hole provides a mounting point for the tensioning clamp). Price per unit. For masts with three directions of guy wires, 3 brackets are required; for 4 directions, 4 brackets are required. The number following the “U” in the name indicates the number of holes; the designation “2550” indicates compatibility with the M250 series masts, M400, and M500 series masts; the designation 7510 indicates compatibility with the M750 and M1000 series masts.

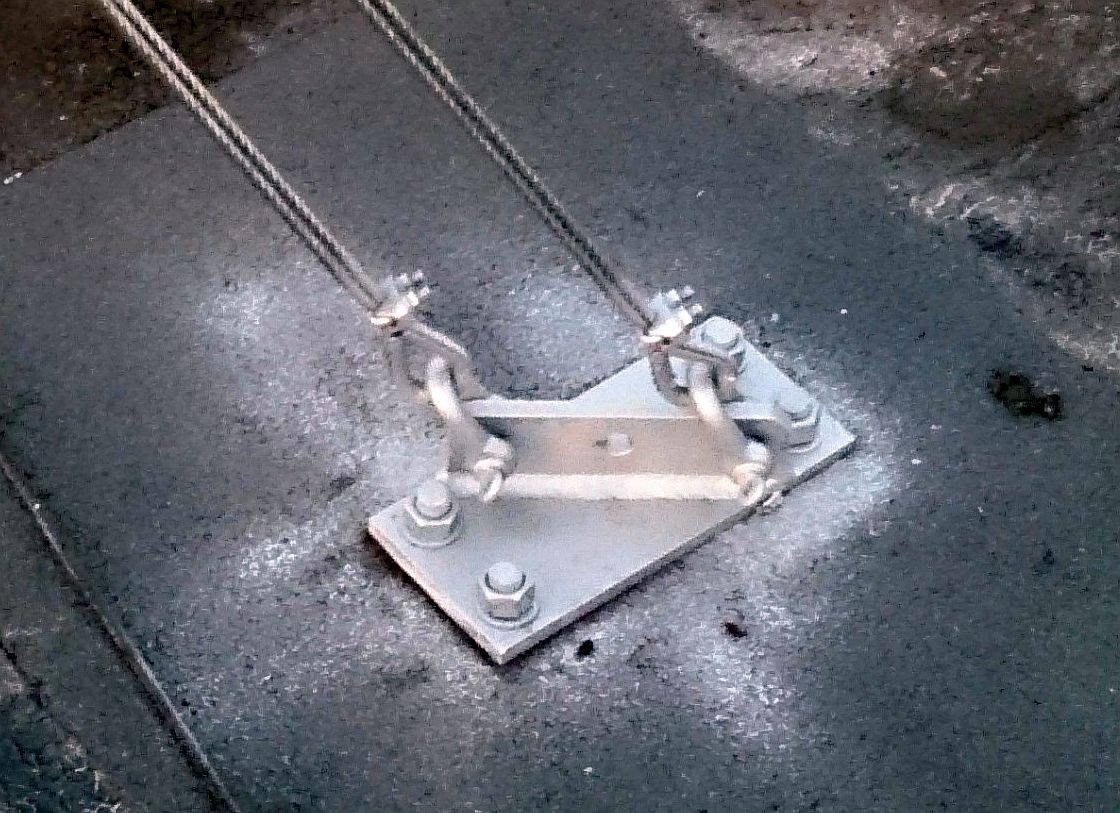

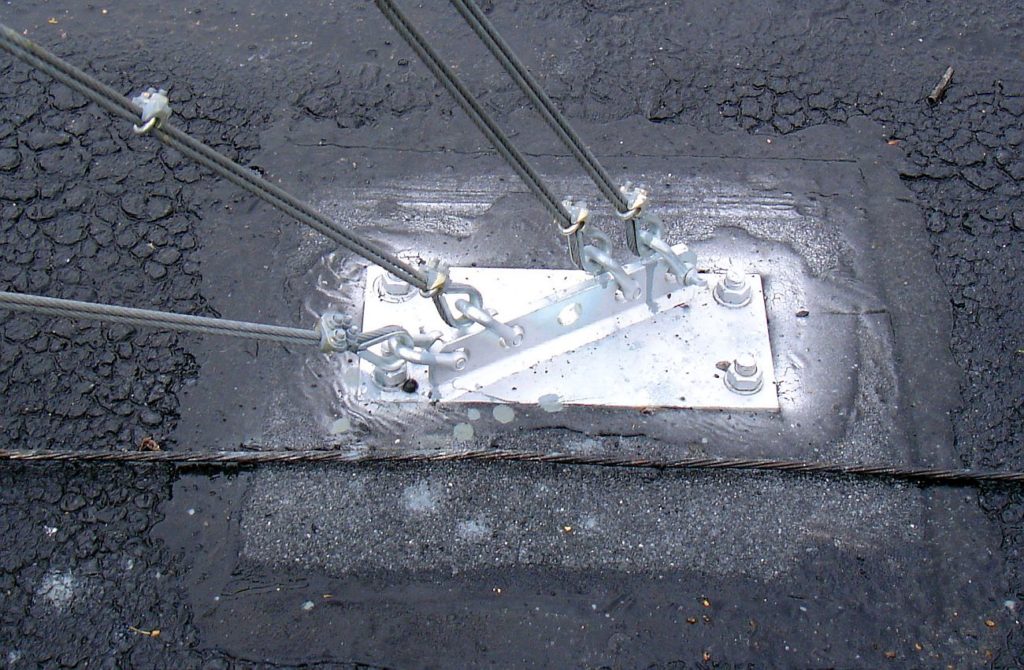

Projects and Photos
