WRM series radio antenna support for M series masts
The WRM antenna bracket is designed for use with AluPro M-series masts.
Goes well with
Only relationships confirmed in the descriptions and catalog.
Accessories for: M1000 aluminum lattice mast. Click on the item in the diagram.
The Summit and the Lightning Strike
Mast top: lightning protection cone and antenna adapter.
Crowns and separation platforms
They are spaced apart from each other.
Antenna brackets
Brackets for flat antennas and radio lines.
Exhausts
Rope marks and torsional bracing of the mast.
Work platforms and work platforms
Work stations for working at heights, both outside and inside the shaft.
Safety flaps
Hatches in the shaft, above the ladder.
Security Measures
Anti-climb protection and fall arrest system.
Mounted on
Aluminum lattice mast M1000WRM1000
T1000 series aluminum telecommunications lattice towerWRM1000
WBTK-20Tower on container T1000-20 WBTK-20T1000 Series Tower Accessories
Aluminum lattice mast M750WRM750
Aluminum lattice mast M500WRM500
T500 series aluminum telecommunications lattice towerAM500, TEC500, KM500, WM2550, WRM500, WADM500Technical Specifications
| Parameter | WRM500 | WRM750 | WRM1000 |
|---|---|---|---|
| Height | 760mm | 980mm | 1000 mm |
| Distances from the mast | 500mm | 750mm | 1000 mm |
| Weight | 1.5kg | 2.2kg | 3.9kg |
| Antenna mounting diameter | diameter 60 mm | diameter 60 mm | 80 mm diameter |
Description
The WRM antenna bracket is designed to work with AluPro M series masts. It allows the installation of all types of antennas, especially recommended and designed for radio lines (high torsional stiffness). Possible installation at any mast height. The set includes mounting clamps. The material is AW6063T6 aluminum. Due to the adopted mounting technique, it is available for M500 and wider masts. For M250 and M400 we recommend the WM flat bracket.

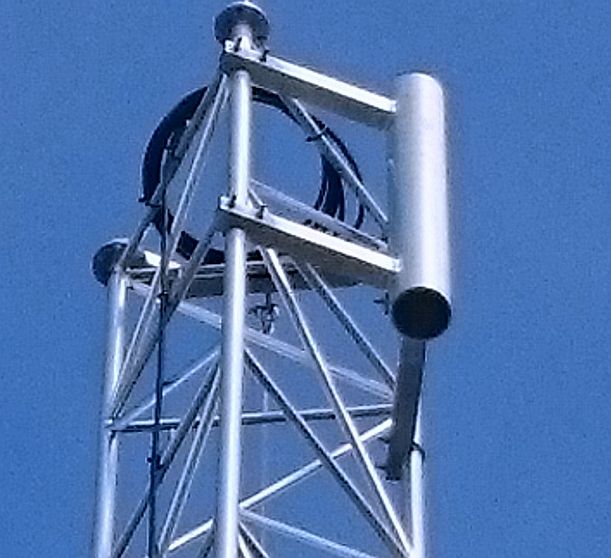

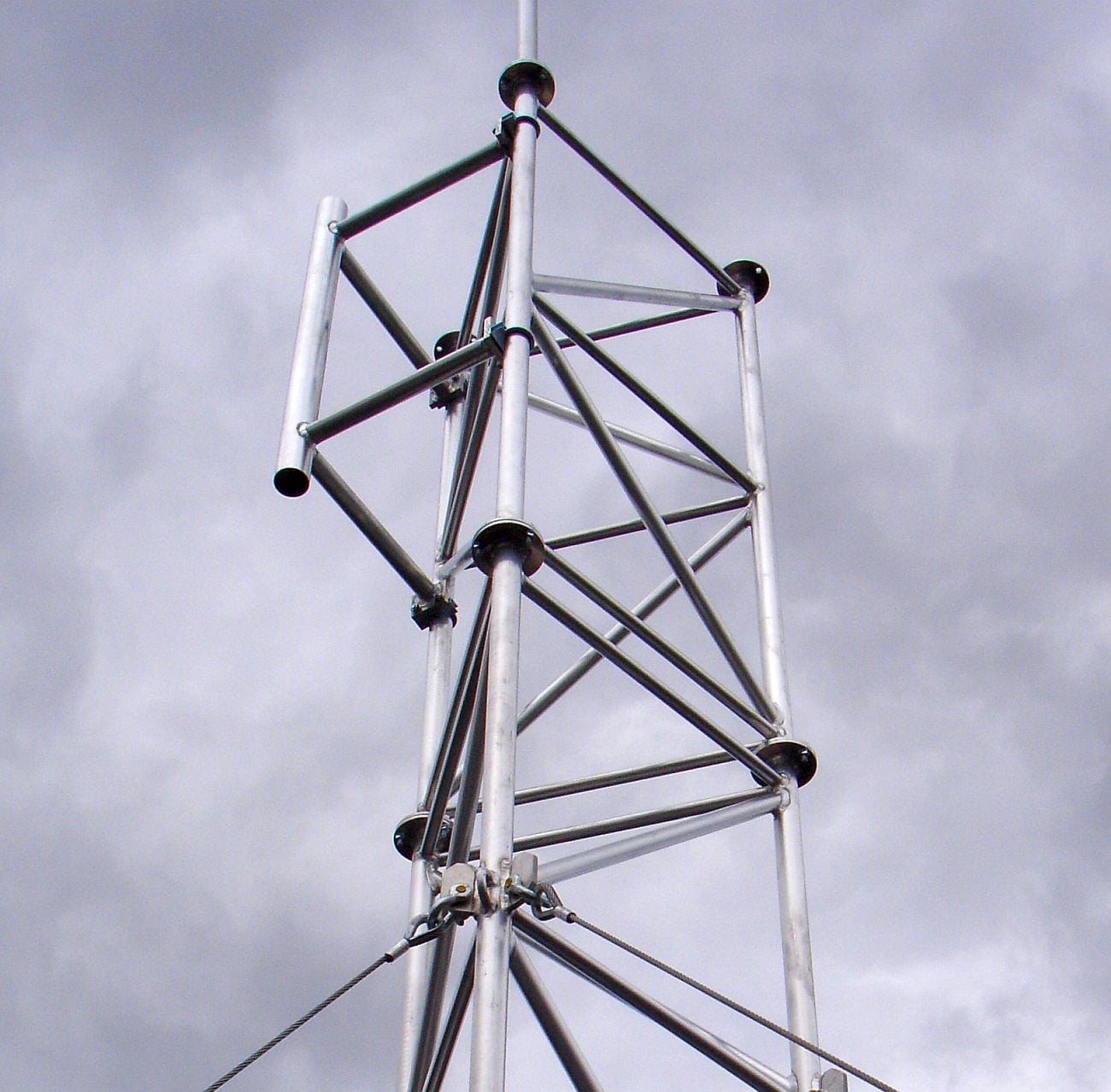

Projects and Photos
