Wieża kratownicowa aluminiowa telekomunikacyjna serii T1000

SYSTEM 1000

T1000 series aluminum telecommunications truss tower

The most versatile AluPro tower: accessed via an internal ladder and featuring a complete accessory system shared with the M1000 mast.

1.5 m²wind load capacity, Wind and Icing Zone I

1000 mmwidth at the top

ladderinternal, antenna access

Other wind zones and antenna arrays: the structural engineer determines the selection.

nettoprice as of March 14, 2024

Height

Clear

Add to quote

Ask about product selection 13Cards and drawings available for download ↓

Dariusz Wojciechowski, Eng.502 218 191Design selection and manufacturing. Let's start with the antennas: how many, what types, and at what height.

Goes well with

Only relationships confirmed in the descriptions and catalog.

System 1000 accessories are interchangeable with M1000 masts and T1000 towers. They require modification for use with other structures.

It won't fit without some alterations: M250–M750 (different shank widths) · T1200 (1200 mm shank)

Schematic diagram of the tower. The location and number of components depend on the design.

Click an item in the illustration or a category below.

Antenna brackets

Brackets for flat antennas and radio lines.

WM series flat antenna bracketWM1000

WRM series radio link antenna support for M series mastsWRM1000

WADM Series Antenna Mount (Lattice)WADM1000

UTM series wind turbine holderUTM1000

Technical Specifications

Wymiary i masa według wysokości

rysunek poglądowy, szerokości powiększone 2,5×

Height [m]48121620242830Szerokość podstawy [mm]1200120016002000–280032003600Masa wieży [kg]245273110190270380460

Najedź na kolumnę, żeby podświetlić wieżę i wartości. „–” oznacza brak danych w karcie.

01Design

Width at the top: 1000 mm
Wind Resistance (Zone I for structural and wind loads): 1.5 m²
The height of a single segment: 4 or 6 m

02Materiał i wykonanie

Material: AW6060/6063 T6
Support pipes/curbs (depending on height): ø60×2/3ø70×3/5ø80×3/5ø100×5ø120×5/8
Horizontal lacing (depending on height): ø30×2ø30×3ø35×2ø35×3ø40×3
Diagonal hatching (depending on height): ø30×2ø30×3ø35×2ø35×3ø40×3ø50×3ø60×3
Welding technique: TIG

03Montaż

Joining Segments: Flanges with M10/M12,M14/M16/M20 screws, 9 pieces per section

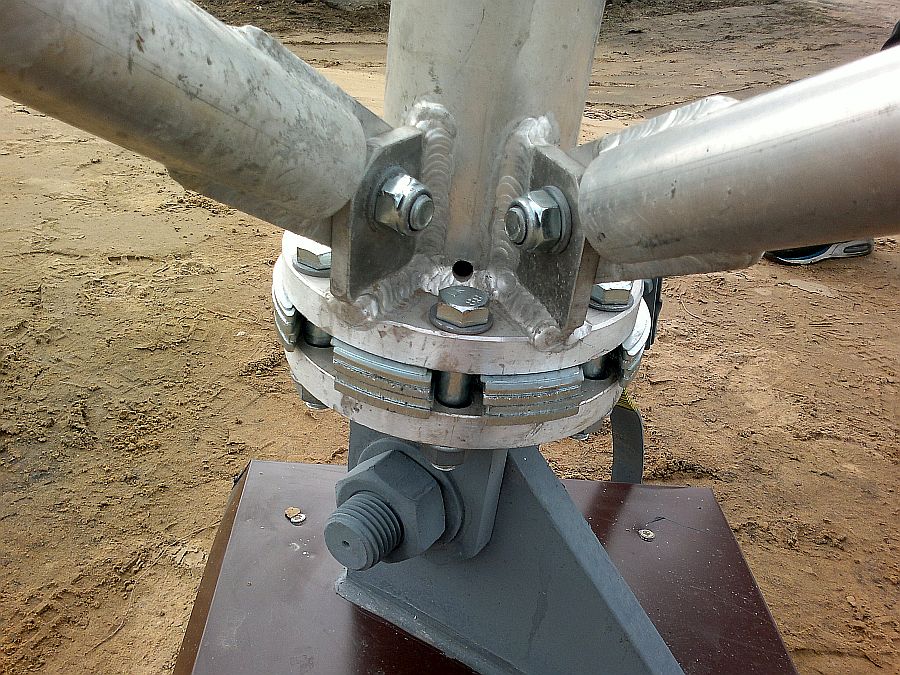

Tower mounting: Three-point, pin (prefabricated element) or 3x collar/flange (AluPro anchors for reinforced concrete)

TECHNICAL DOCUMENTATION

Documents

PDF: 13
CAD: in response to a request
Access: without a form

Report an error in the data

Description

The T1000 aluminum radio truss tower is designed for medium and large-sized antenna installations (including large radio lines). In the first wind and icing zone it can be loaded1.5 meters square the surface of the antennas applied at the top. T1000 towers are usually mounted on the ground, the maximum available catalog height is30 meters, but we also manufacture the T1000 tower, which is 38 meters. AluPro also manufactures custom-made steel towers in larger sizes; it is also possible to produce a version of the T1000 tower designed for higher loads or to adapt it for use in other ice and wind zones (T1000 structures are used successfully in the Tyrolean Alps).

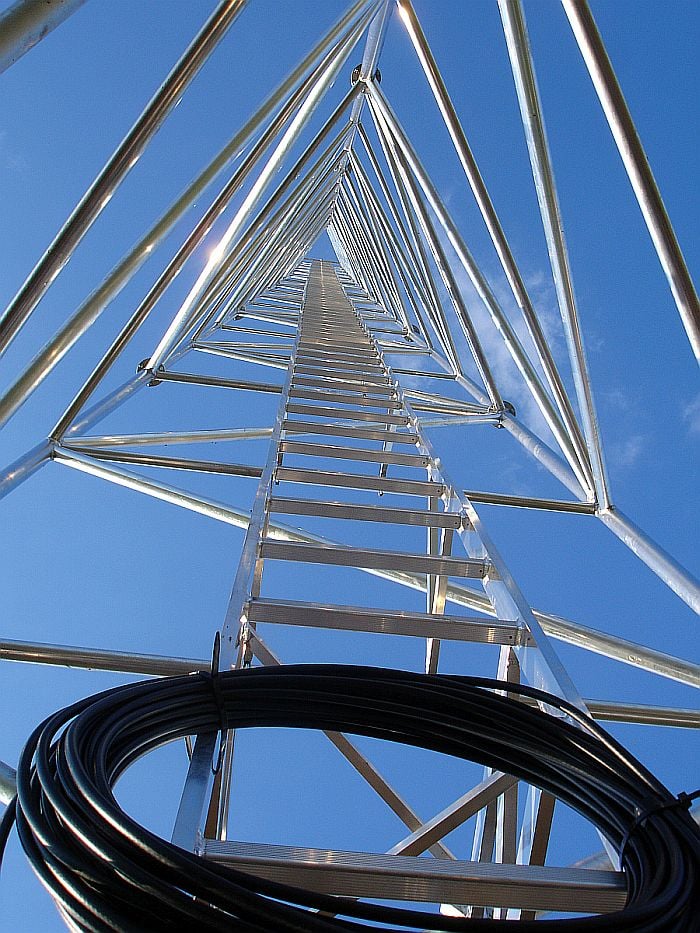

The T1000 towers stand outcomfortable ladderinternal, allowing for comfortable movement around the structure, easy to useSecuro anti-fall system, andcompatibility with accessoriesintended for M1000 series masts (safety flaps,outdoor platforms,landing separation crowns). Welcome to the sectionMast Accessoriesto learn more about this topic.

The set includes a set of welded (upper) and screwed (bottom) segments,The segments are 4 or 6 meters long, a set of screws and a lightning rod.
