Mocowanie Krańcowe Ścienne Łamaczy Światła i Daszków systemu AluPro1 / 1
FACADES

End Wall Mounting for Light Breakers and Canopies of the AluPro System

185,00 zł nettoprice as of April 24, 2024
Add to quote
Ask about the version or quantity 1Download the document ↓
Dariusz Wojciechowski, Eng.502 218 191Production and custom versions.

Goes well with

Only relationships confirmed in the descriptions and catalog.

Mounted on

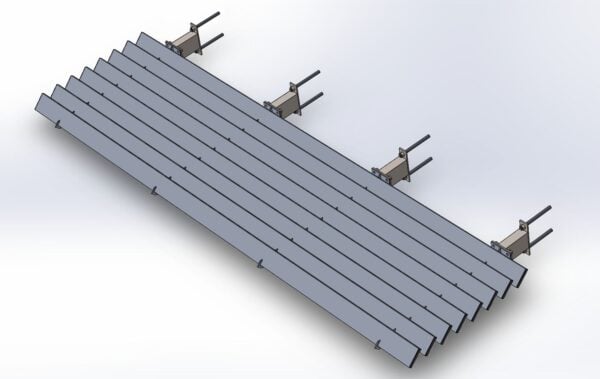

LSPLS2600x1000Light Breaker Full LS 2600x1000end/center mounting; length based on insulation thicknessLight Breaker Without Frame LSBR 2600x1000end/center mounting; length based on insulation thicknessLight Breaker Without Frame LSBR 3500×1000end/center mounting; length based on insulation thicknessPolycarbonate Canopy Straight DPP 1300x1000 mmend/center mounting; length based on insulation thicknessPolycarbonate Canopy Straight DPP 2600×1000 mmend/center mounting; length based on insulation thicknessFacade Canopy with Drain DOP 1300x1000 mmend/center mounting; length based on insulation thickness

Includes

Central Wall Mounting for Light Breakers and Canopies of the AluPro Systemset: endpoints + midpoints

TECHNICAL DOCUMENTATION

Documents

PDF
1
CAD
in response to a request
Access
without a form

Report an error in the data

Description

This fastener is used to install light diffusers and canopies for all AluPro systems (external fastening points, at the edges). The length of the fastener is adjusted to match the thickness of the customer’s facade insulation. The outer mounting plate should be flush with the visible surface of the facade. The mounting bracket is installed during the facade installation phase—this anchorage point allows for the subsequent installation of a canopy or light diffuser without the risk of damaging them during construction work.
