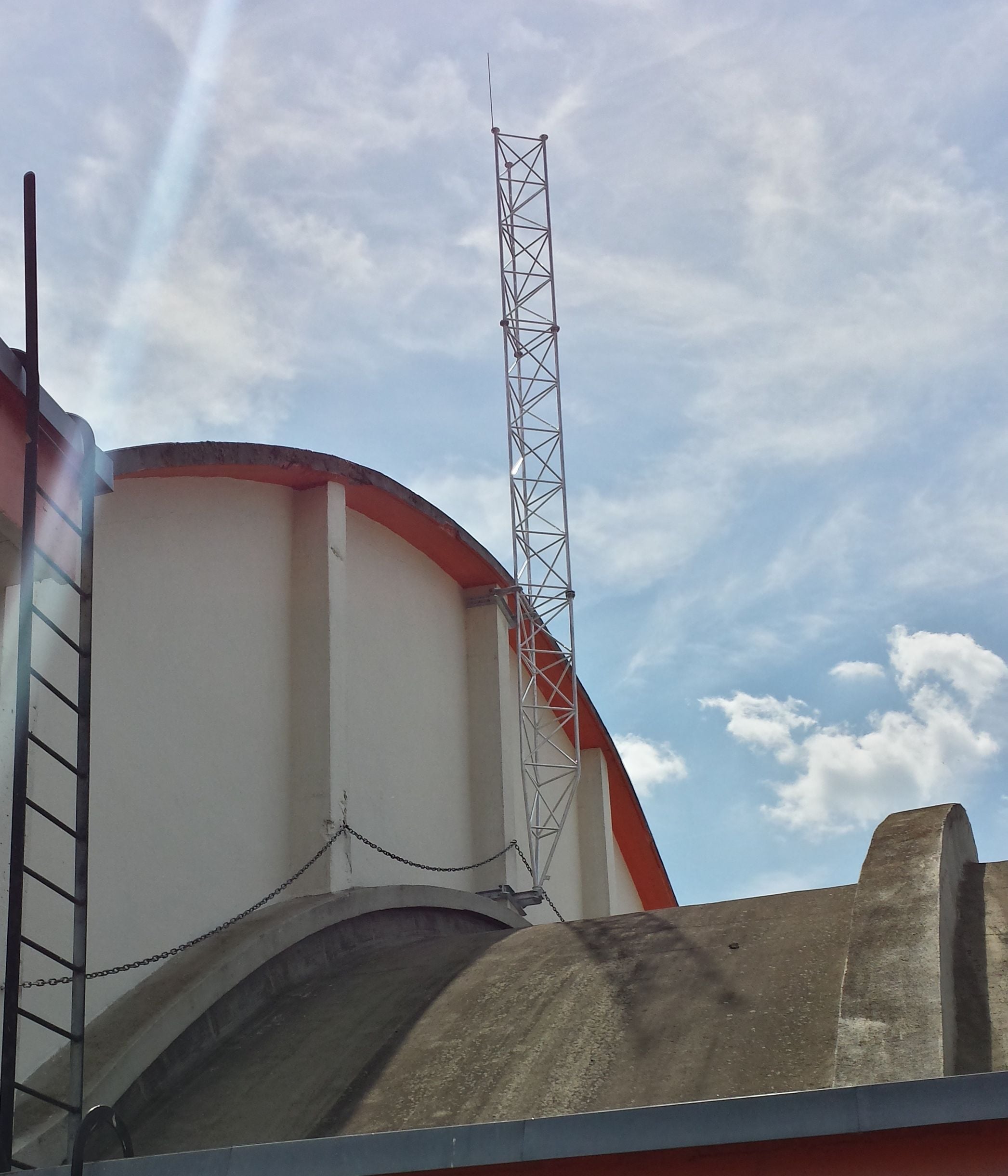

Aluminum truss wall mast, M500 series
This product has many specifications that must be specified when ordering; please read the description, as the prices reflect specific configurations.
Goes well with
Only relationships confirmed in the descriptions and catalog.
Accessories and parts for this product
M500 Series Service TrussM500-S2/S4; “lower wall-mounted segment” for a wall-mounted mast
Wall mounting, 100 mm distance, MPD100 seriesVariant -M250 → M250-WM, -M500 → M500-WM (Variant -M400: The M400 wall-mounted mast does not have a product listing in the store)
Wall mounting, 300 mm distance, MPD300 seriesVariant -M250 → M250-WM, -M500 → M500-WM (Variant -M400: The M400 wall-mounted mast does not have a product listing in the store)
Wall mounting Distance 600 mm MPD600 seriesVariant -M250 → M250-WM, -M500 → M500-WM (Variant -M400: The M400 wall-mounted mast does not have a product listing in the store)Technical Specifications
Sample Technical Specifications for the M500-12-S4-WM Model
01Design
- Mast width
- 500 mm
- Segment length/mast height
- 4 m / 12 m
- Segment weight
- Approximately 10.5 kg
- Segment length
- 2m - for the S2 version and 4m - for the S4 version
- Curb
- ø35×2
- Grip offset
- 300 mm /other values on request/
- Spacing between handles
- 1900 - 3900 mm adjustable (for the upper version with clamp mounting)
02Materiał i wykonanie
- stuff
- AW 6060/6063
- Horizontal grating
- ø20×2
- Diagonal lacing
- ø20×2
- Welding technique
- TIG
03Montaż
- Connecting segments
- Kołnierzowe śruby M8×25, 18 szt
- Mast mounting
- Articulated with two degrees of freedom
- Wall mounting
- 2 dedicated handles
- The method of attachment
- 9xM16 threaded rods glued with chemical anchor
- Upper attachment of the handles to the mast

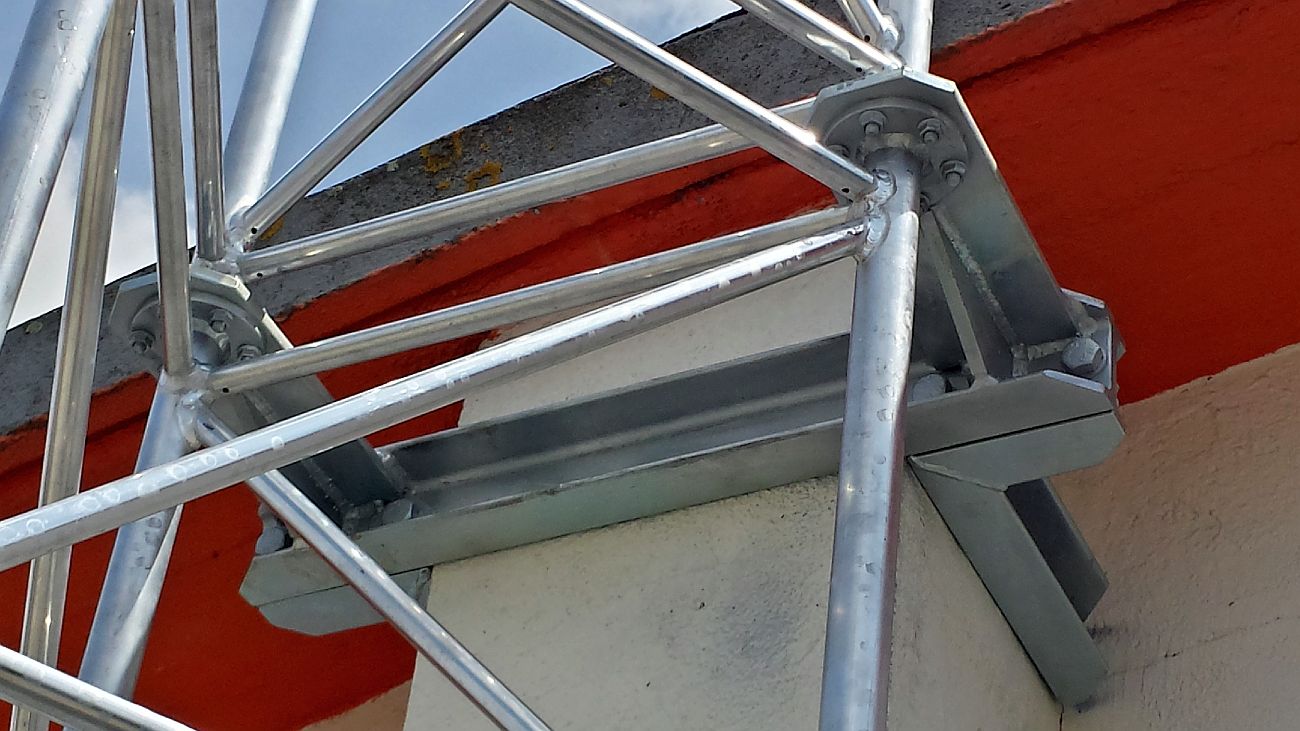

- 2x cybant M8 ø35 mm (regulowane w pionie, słabsze) lub uchwyt międzykołnierzowy (nieregulowane w pionie, mocniejsze)

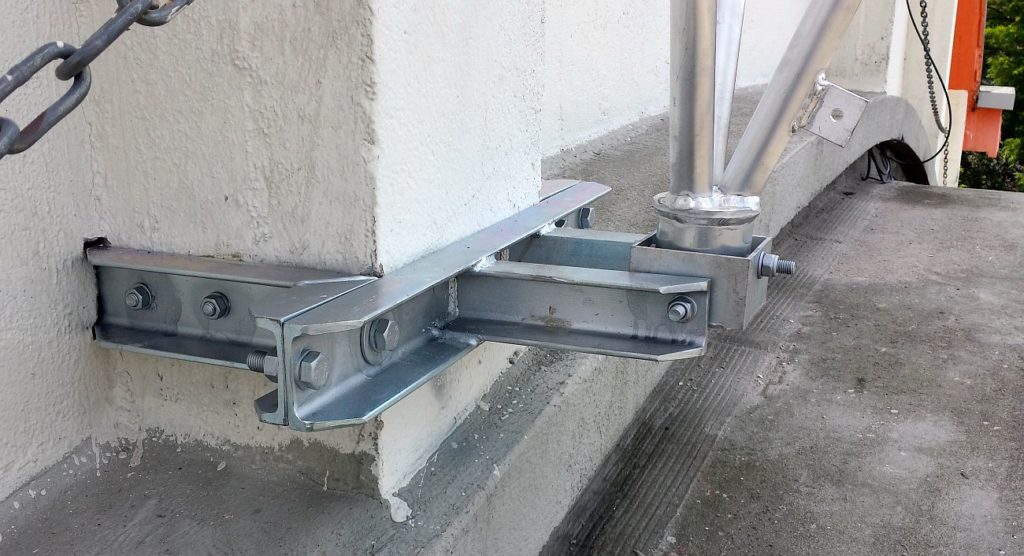

- Lower mounting of the handle to the mast
- through the swing foot
TECHNICAL DOCUMENTATION
Documents
- 7
- CAD
- in response to a request
- Access
- without a form
M500-12Wall-mounted, 100 mm spacing
M500wall-mounted mast H=8—total 10.6 m, spacing 100 mm + antennas
M500wall-mounted mast, H=3, total height 6.1 m, spacing 100 mm
M500wall-mounted mast H=3—total 5.1 m, spacing 100 mm
M500wall-mounted mast H=8—total 10.6 m, spacing 500 mm
M500wall-mounted mast H=8—total 12.4 m, spacing 100 mm
M500wall-mounted mast H=8—total 12.6 m, spacing 600 mm- DWG
STEPCADDrawing or 3D model available upon request

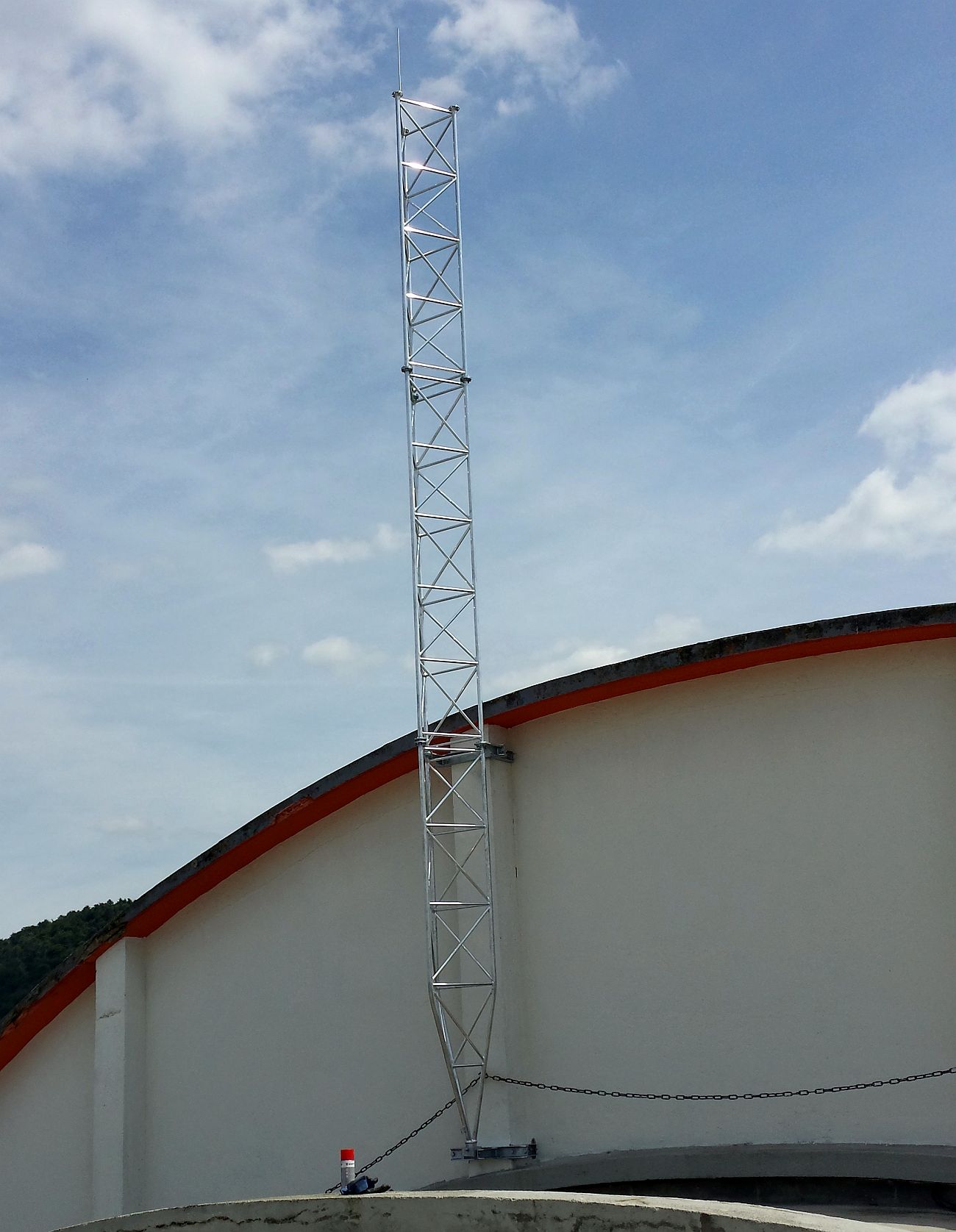

Description
A wall-mounted mast based on the M500 truss, constructed from 4-meter segments. The mast is designed for use in Wind and Icing Zone I and is intended forload of 1.0 square meters of antenna area at the top. Solutions based on the M500 series trusses are primarily used where a stronger structure with a higher load-bearing capacity is required, and where radio shadowing and aesthetic considerations are of lesser importance. This is particularly useful for radio links where increased rigidity—even in windy conditions—is important. The directional nature of radio links essentially makes them independent of the width of the support structure’s shaft. The mast will never be located in the path of radio wave propagation.
Wall-mounted poles have four basic parameters that can be freely combined to create a solution tailored to a specific structure. The multitude of possible combinations makes it impossible to create a standardized offering, and in principle, each case should be discussed with AluPro specialists.
The parameters are: segment width, height of the wall-mounted mast above the top mounting (freestanding section), the length of the cantilever segment (between mountings), and the distance of the mast from the wall (space for eaves, cornices, etc.).
In the price list, we list the costs for masts where the distance between mounting points is 3 meters, the distance from the wall is 300 mm, and the height of the unsupported mast is the variable. Straight segments are 2 or 4 meters long.
