Steel lattice pole prepared for 3 large LED floodlights and equipped with MG-3LB mounting (included in the price). Like each of our poles - the upper segment allows you to replace the mounting plate with another available solution from the MG series. We can also develop an independent plate for your system - the possibility of adaptation is the strong point of our solution. The pole is made of steel bars, thanks to the lattice structure it is particularly durable and stable in strong winds. The modular design (division into sections) facilitates any repairs in the event of damage (e.g. traffic damage) - only the lower segment can be replaced.
Technical parameters:
- Steel S235 Hot-dip galvanized
- Interchangeable sheets and top plates
- Adjustment on the floodlight bracket
- Top plate - 6 mm Steel sheet
- The weight of the entire truss with the plate is less than 300 kg
- Set of screws included

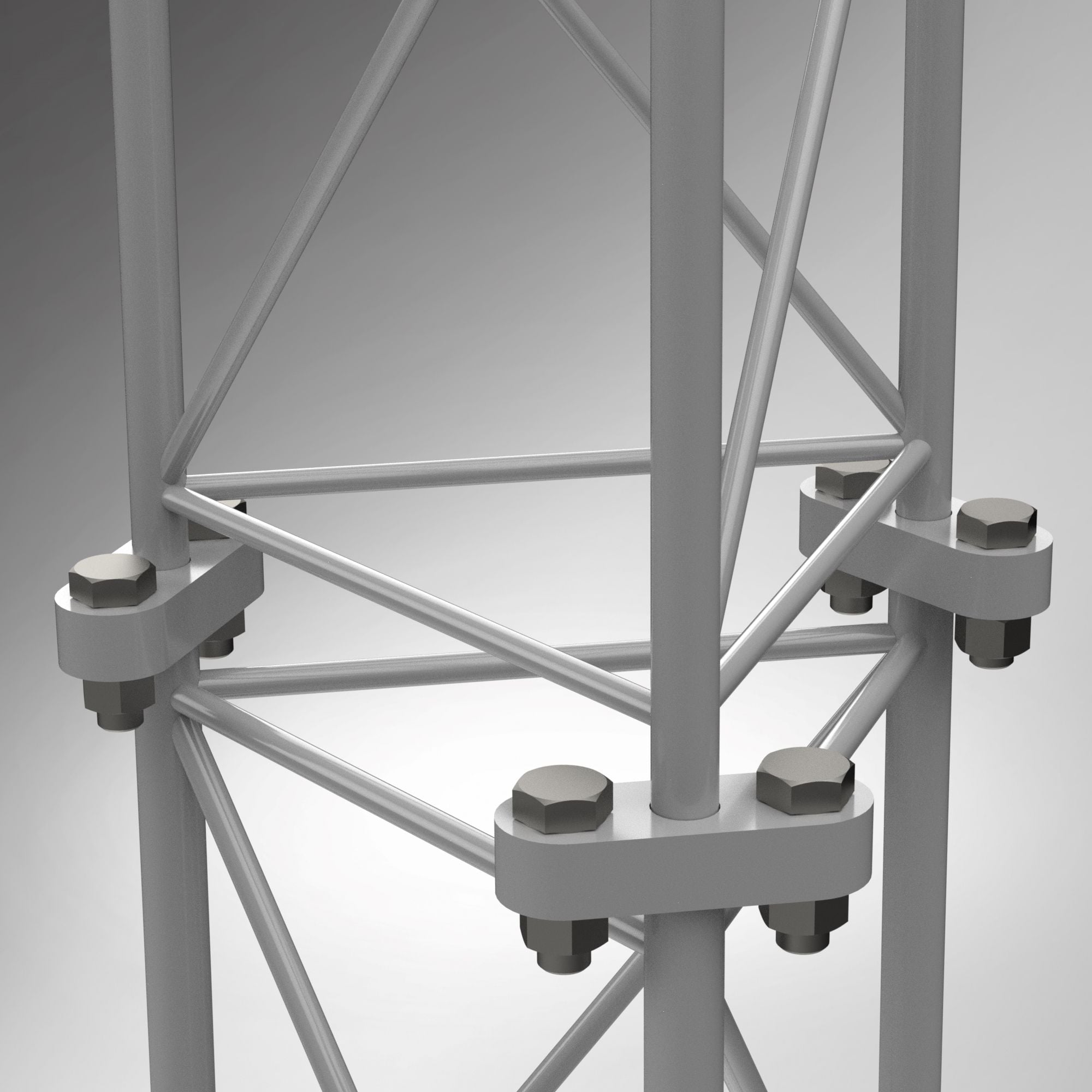

- Flanged connections 15 Mm sheet metal, fasteners – m20 Screws
Multimedia:
Product gallery:
Applications — complete lighting kit

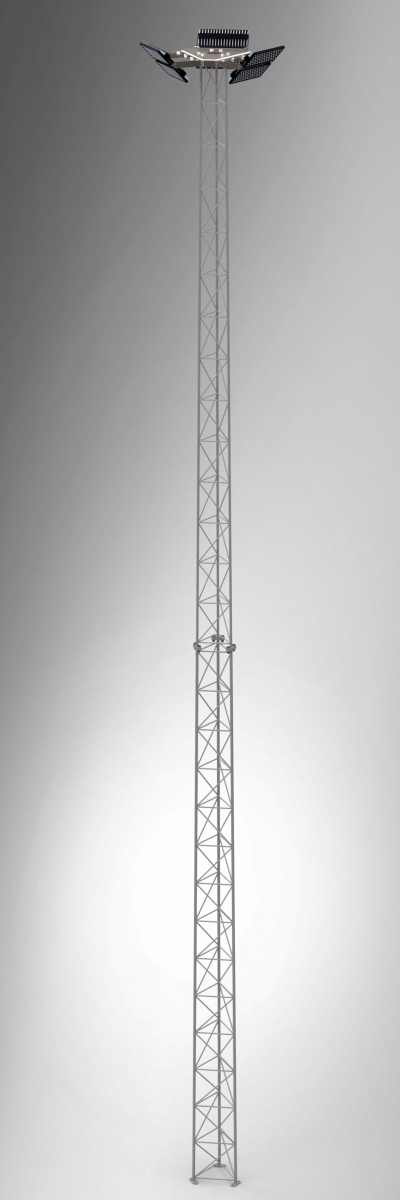

The WSH12-W450-240-3-LED pole is a complete plug-and-play solution: a 12-meter steel lattice pole with a factory-installed MG-3LB head designed to hold three large industrial LED floodlights. It eliminates the need to select and order a head separately—the ideal solution for investors who value time and system consistency.
- Large parking lots and maneuvering areas – Three LED floodlights arranged in a 120° pattern provide even illumination of even a large area from a single pole.
- Industrial and logistics sites – A height of 12 m allows for coverage of an area with a radius of 20–30 m using floodlights rated at 200–400 W each.
- Gas stations, distribution centers – The pre-installed MG-3LB mounting bracket allows floodlights to be installed immediately upon delivery of the pole.
- Construction sites and temporary sites – The modular design and flanged connections allow for quick disassembly and relocation.
Why choose hot-dip galvanized steel trusses?
- Higher torsional stiffness at 12 m – Four support tubes connected by trusses form a structure that is more resistant to lateral deflection than a single tube of the same mass, which is crucial at high altitudes.
- Less wind pressure – The open truss structure reduces the frontal area—which is important for floodlights with a large frontal area installed at a height of 12 m.
- Hot-dip galvanizing S235 / EN ISO 1461 – at least 30 years without the need for repainting.
- Modularity – Dividing the unit into sections simplifies transport and segment-by-segment repairs.
Frequently Asked Questions (FAQ)
Which LED floodlights are compatible with the MG-3LB mount?
The MG-3LB sheet (W240 mm spacing) is designed for standard industrial floodlights with screw mounting. A typical configuration is 3 × 150–400 W. The central opening in the panel allows wiring to be routed through the pole via a concealed conduit.
How do you lay the foundation for a 12-meter pole with three floodlights?
For a total wind load at 12 m including the light fixtures, we recommend a precast or cast-in-place foundation measuring at least 1×1 m and 1.5 m deep, with M20 or M24 anchors for chemical anchors. See the product data sheet available for download above for details.
Can I replace the head with another one from the MG series?
Yes—the MG-3LB plate is replaceable. You can replace it with an MG-1L/2L/3L/4L head or order a custom plate for your lighting fixture system.
What is the turnaround time?
We manufacture WSH poles to order—the standard lead time is 3–6 weeks. Please contact us regarding larger orders or rush orders.
