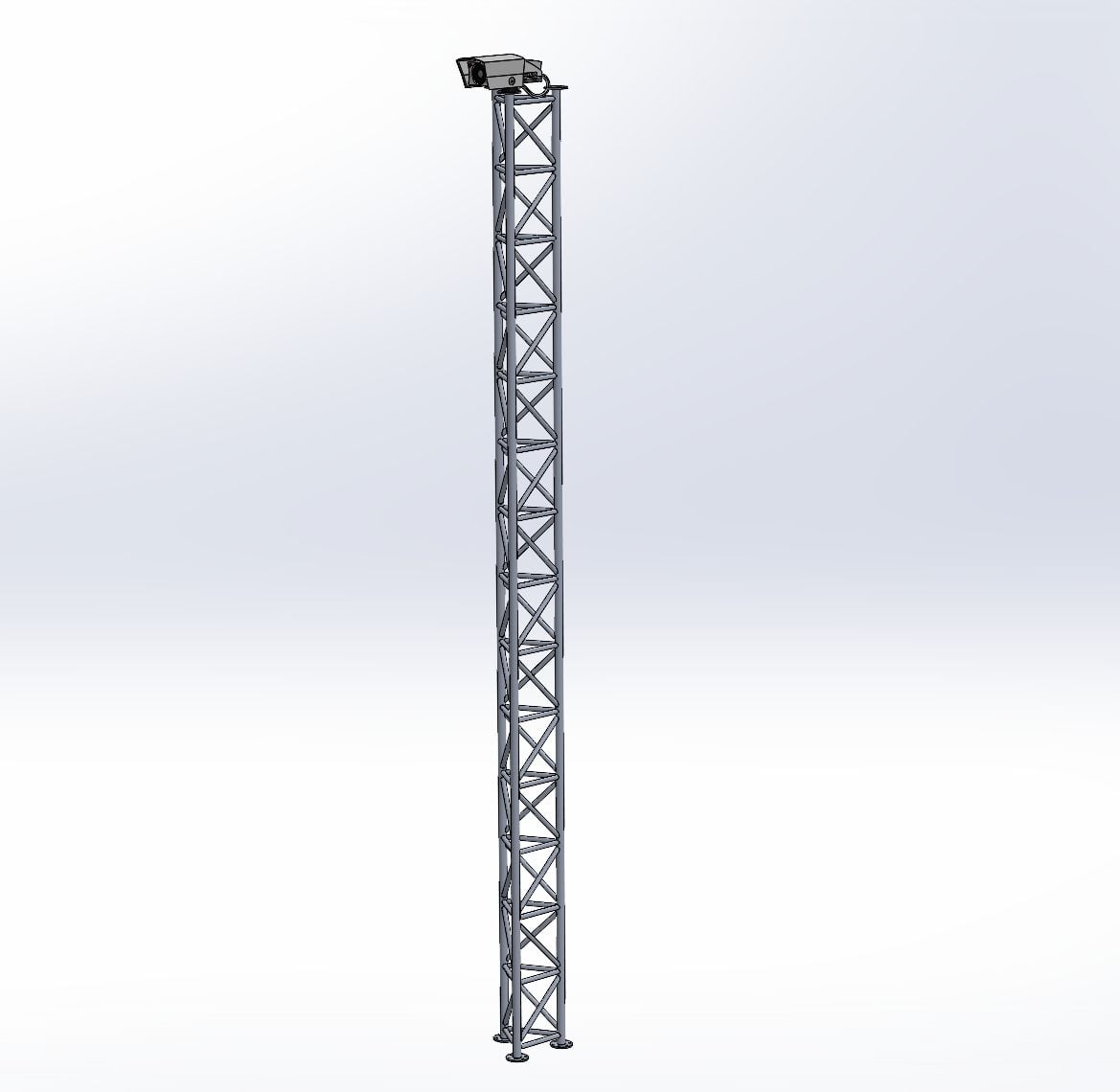

A pole designed to install a single CCTV camera on top of a three-hole flange. Suggested foundation - poured concrete block 0.5×0.5 meters, 1.2 meters deep, drilled with glued M12 pins on a chemical anchor (recommended gluing depth is minimum 25 cm). Due to different water and ground conditions, we suggest consulting a local architect about foundations. The pole allows a technician to enter after mapping to service the camera in winds not exceeding 5 m/s. The pole has a cable entry allowing the camera cabling to be routed through the truss curb.
Technical parameters:
- pole height 4 meters
- truss width 250 mm
- pole mass 16.5 kg
- foundation grate - Flange connection fi 126 mm, thickness 10 mm, 3 holes
- upper connection – flange diameter 94 mm, thickness 6 mm, 3 holes
- aluminum AW6082, support pipe 35×2, grating 20×2
- finish: raw aluminum
- rAL powder painting possible, additional fee PLN 490
Multimedia:
Catalog cards:
price update 2019-06-22
Applications of the M250-4 CCTV Pole
The M250-4 camera pole is a 4-meter aluminum lattice structure—the shortest and lightest (16.5 kg) surveillance pole in the AluPro lineup. It is designed for mounting a single CCTV camera at the top using a standard 94 mm diameter three-hole flange. Its compact size makes it ideal for locations where a taller mast would be unnecessary or would obstruct visibility.
- Entrances to the premises and gates – 4 m is the optimal height for illuminating and monitoring a pedestrian entrance or gate; the camera is mounted on a 94 mm flange and is accessible for maintenance from a ladder.
- Above-ground parking lots – A single pole with one 360° dome camera or one bullet camera covers a typical parking area of 20–40 m.
- Warehouses and industrial buildings (Outdoor) – AW6082 aluminum, corrosion-resistant in harsh environments; its weight of 16.5 kg makes installation easier in locations without heavy equipment.
- Pedestrian zones and squares – The slender 250-mm lattice does not dominate the space or obstruct pedestrians' view.
Key technical features
- Height: 4 m · weight: 16.5 kg – the most compact model in the M250 line; installed by two people without a lift; the camera can be serviced from a ladder.
- Top flange, 94 Mm diameter · 3 holes – Standard mounting spacing for typical CCTV camera heads; adapters can be used for non-standard cameras.
- AW6082 Aluminum · 35×2 Tube · 20×2 Mesh – identical to the M250-5LUK; easy replacement or expansion of the camera system within the series.
- Cable conduit – The camera’s wiring runs along the edge of the truss from the top to the bottom; no cables are visible on the outside.
- Base flange, 126 Mm diameter · 3 holes – a compact foundation measuring 0.5 × 0.5 m, 1.2 m deep; leaves a small footprint on the surface.
Frequently Asked Questions (FAQ)
Can the M250-4 handle the weight of a PTZ camera?
Yes—a 250-mm aluminum truss at 4 m has a very low slenderness ratio; PTZ cameras typically weighing up to 5 kg are within the load-bearing capacity. For cameras weighing more than 5 kg or with a large windscreen (e.g., an ANPR dome), please consult with us.
What kind of foundation is needed?
The recommended foundation is a 0.5×0.5 m cast concrete block, 1.2 m deep, with M12 studs embedded using chemical anchors. If the soil has low bearing capacity, consult an architect regarding the design.
Can I order the M250-4 with a longer mast?
The M250 series includes the M250-5LUK model (5 m with a bend) and the MKZ5025-6-CCTV model (6 m tapered, multi-camera). We select the model based on the specific installation requirements.
