MBRQ series corner tubular ballast mast

The MBRQ tubular ballast mast is designed for the installation of small antenna systems.

1 240,00 zł nettoprice as of April 3, 2024

Ask about product selection 1Download the document ↓

Dariusz Wojciechowski, Eng.502 218 191Design selection and manufacturing. Let's start with the antennas: how many, what types, and at what height.

Technical Specifications

Basic Information

6 foundation blocks – 24kg each (38x24x12)
structure weight – 9 kg
gross weight – 153 kg
spacing between ballast blocks – 1.5mx 1.5m
height 2 or 3 meters (common price)

TECHNICAL DOCUMENTATION

Documents

PDF: 1
CAD: in response to a request
Access: without a form

Report an error in the data

Description

The MBRQ tubular counterweight mast is designed for installing small antenna systems. It is intended for mounting on flat surfaces, though it allows for vertical adjustment within a range of +/- 5 degrees. Quick and easy installation. Heights of 2 or 3 meters. Central tube diameter: 40 mm

Included in the set

aluminum construction
screws
foundation blocks are not included
3 straps to secure the blocks.

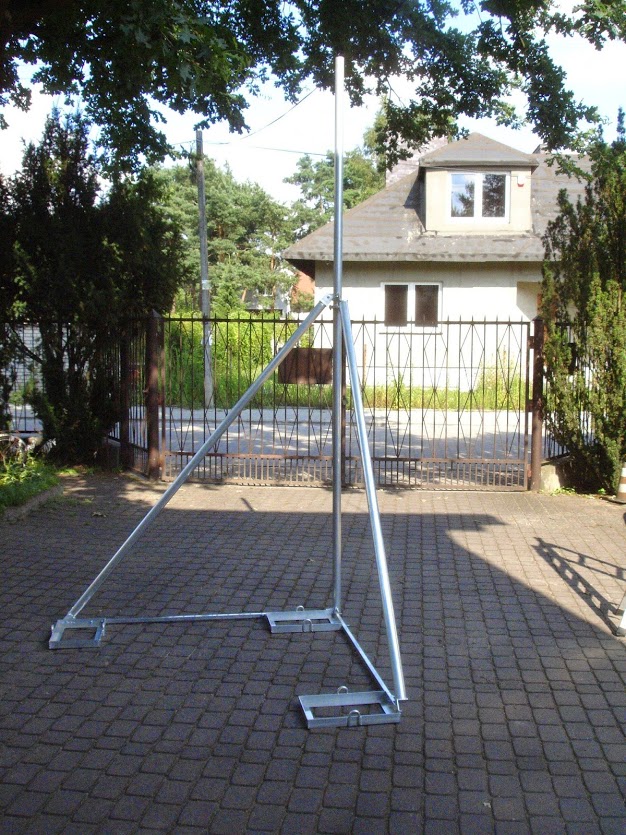

Projects and Photos
