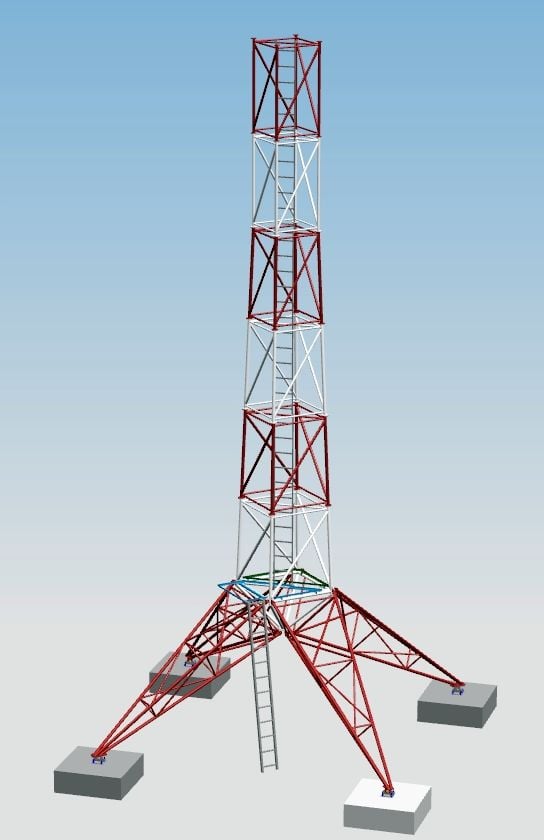

WBQ-16 square aluminum ballast tower
The WBQ-16 ballast tower is a heavy-duty tower designed for specialized applications.
Technical Specifications
Basic Specifications for the WBQ-16
- Maximum antenna load of 2.5 m² in Wind Zone I
- Height 16 meters

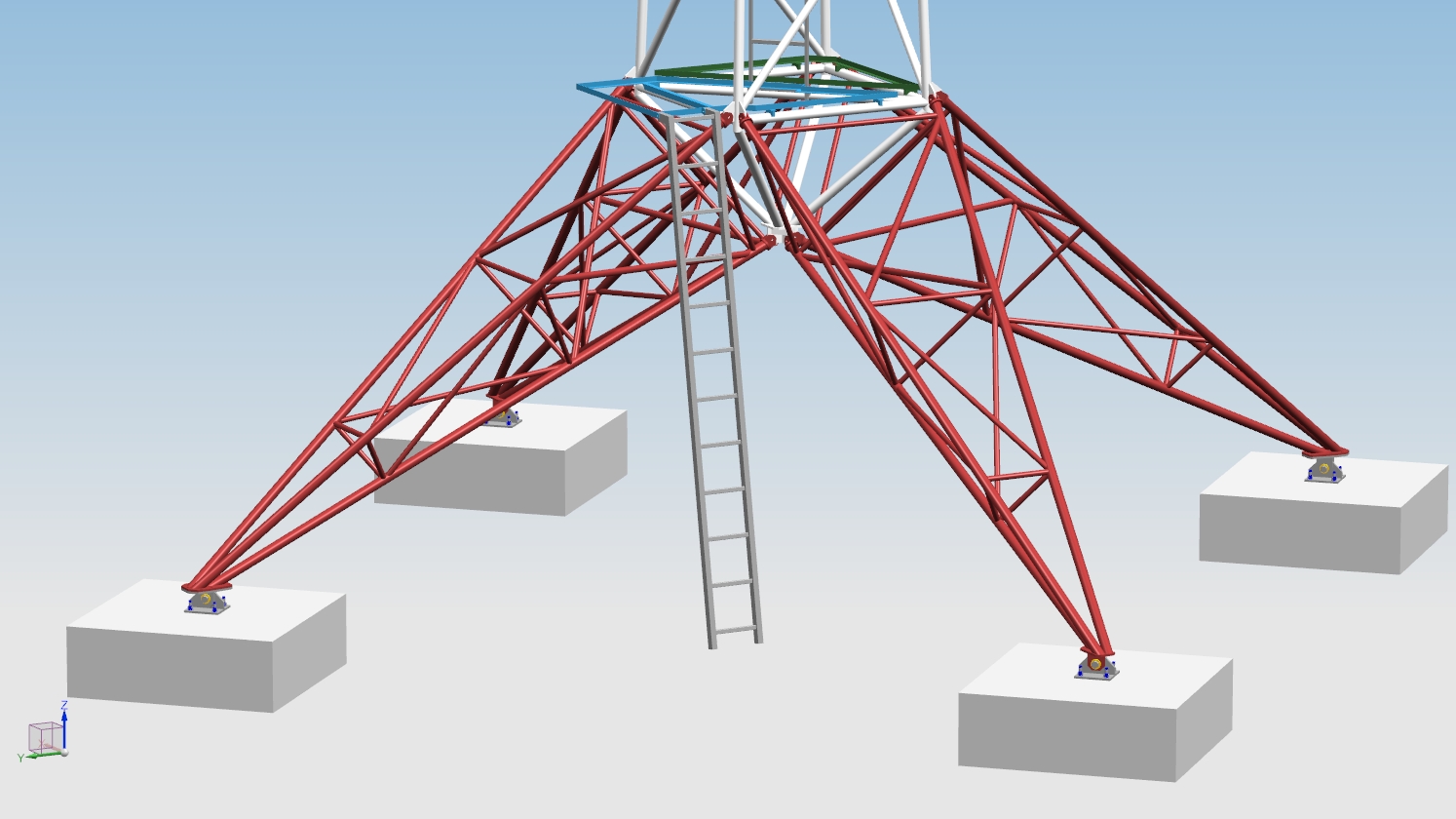

- Possibility of ballasting with concrete blocks or road slabs
- ballast weight 1,800 kg per side, total 7.2 tons
- weight of aluminum structure 284 kg
- vertical adjustment in the range of 5 degrees
- ballast deployment radius 6 meters
TECHNICAL DOCUMENTATION
Documents
- 1
- CAD
- in response to a request
- Access
- without a form
Description

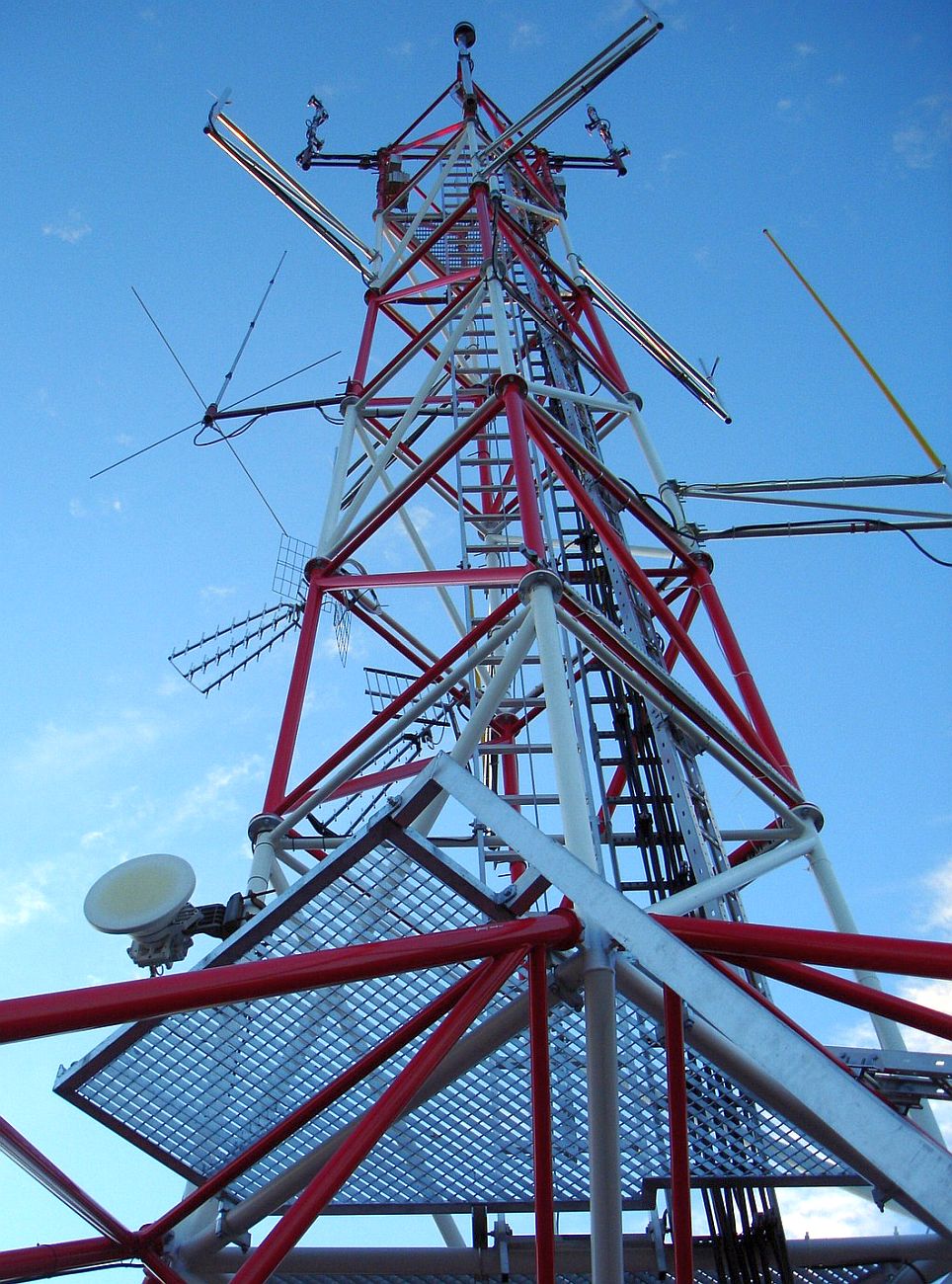

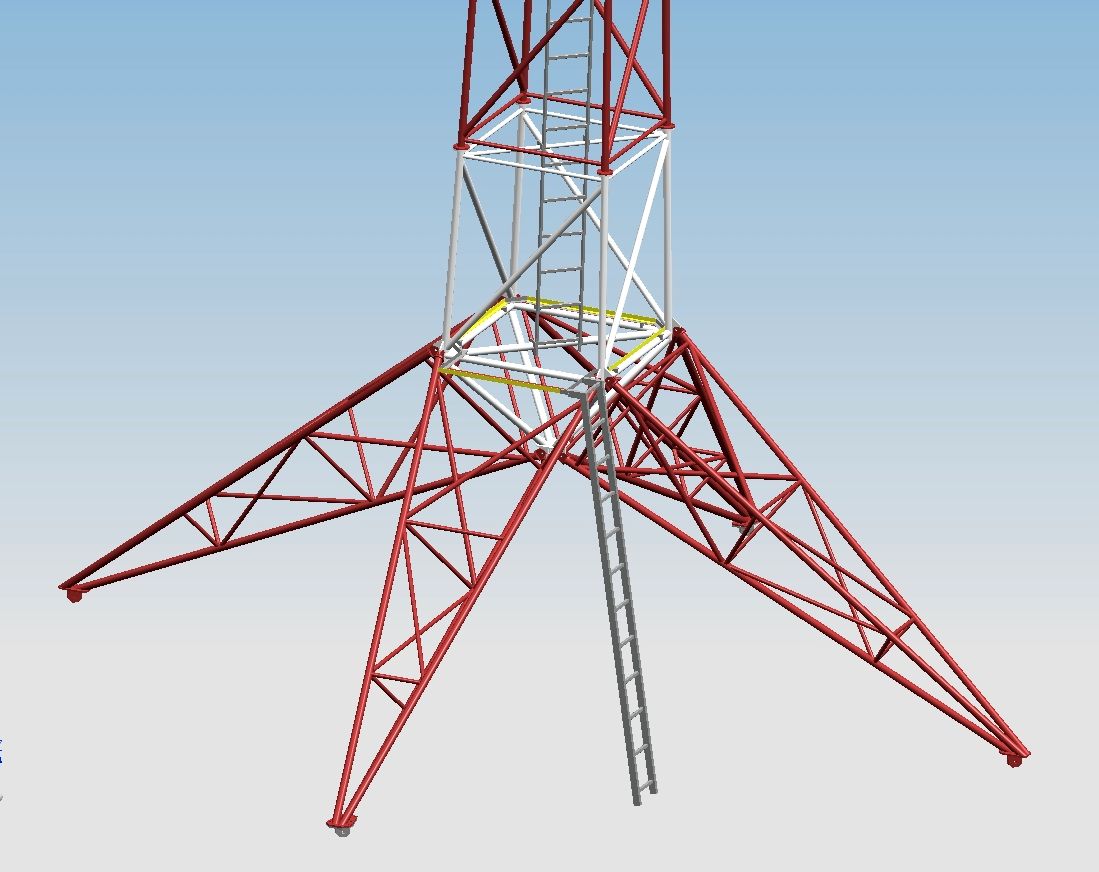

The WBQ-16 ballast tower is a heavy-duty tower designed for specialized applications. It combines exceptional convenience—thanks to its ladder system and work platforms—which allow for constant access to the installed equipment, with high load-bearing capacity resulting from its size and the substantial weight of the ballast used. Towers of this type are well-suited for use at mass events as versatile radio and television towers, where GSM infrastructure can be installed, as well as, for example, TV production crews, surveillance cameras, or rescue team members ensuring the safety of the crowd. The WBQ tower is well-suited to serve as an emergency mast, enabling the rapid deployment of advanced communications in the event of natural disasters. Its strengths include relatively easy installation, high load-bearing capacity, and convenient access to installed equipment even in potentially chaotic conditions.
Included in the set
- M1000 Quadro truss sections, 6 pieces - 2 meters long
- 6-meter-long side support truss (leg) - 4 pieces
- Ballast frame x 4 pieces
- Ballast is not included
- Lightning rod
- A set of screws and fasteners

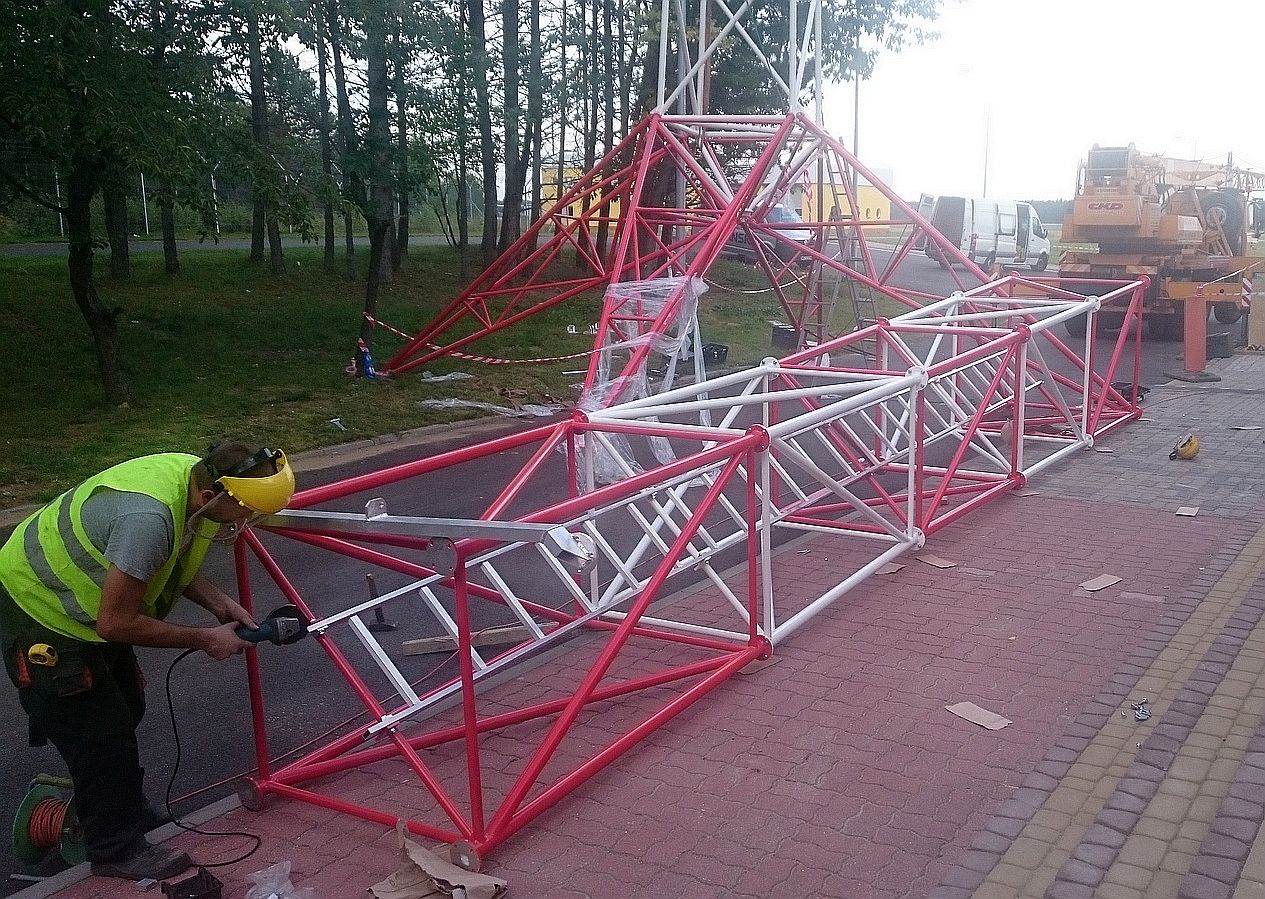

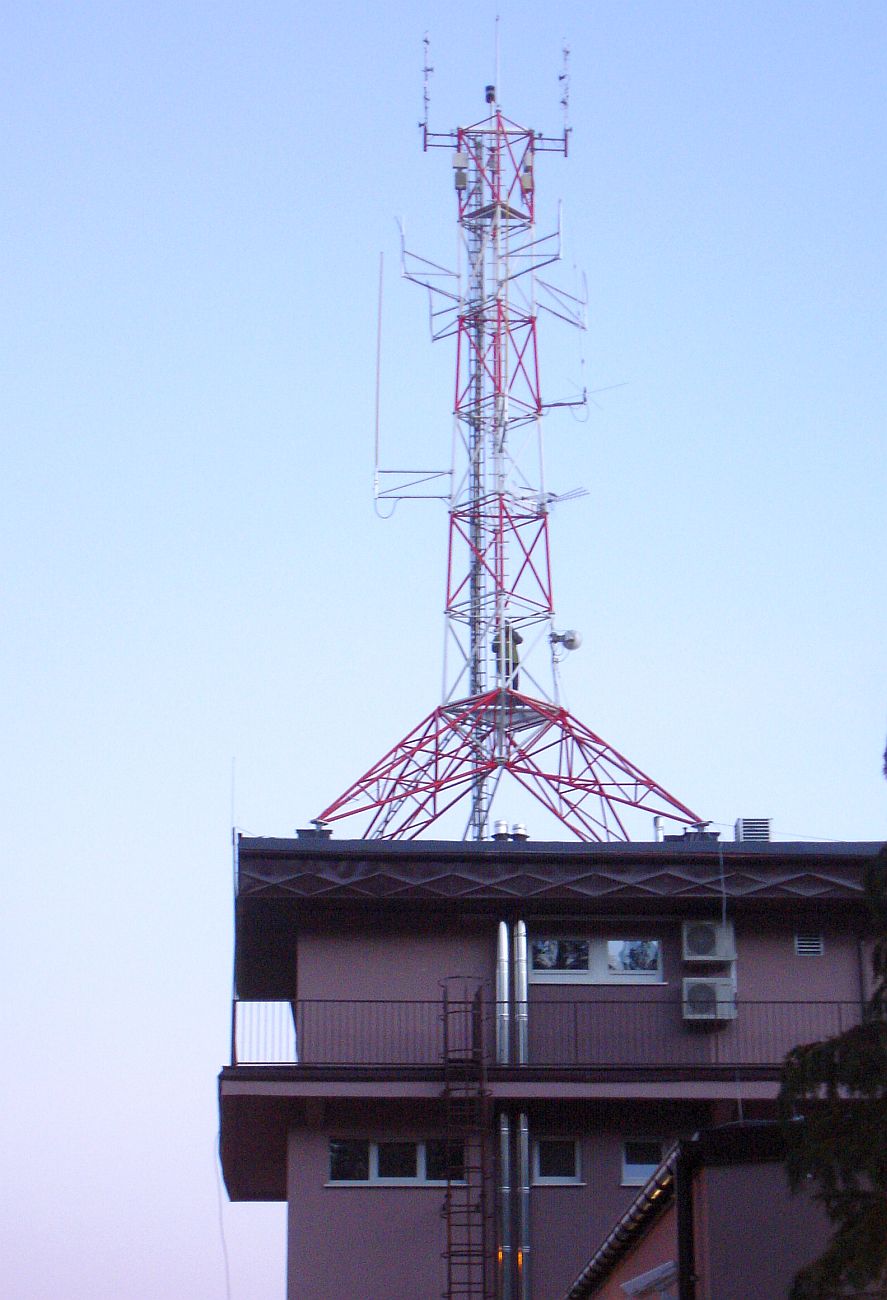

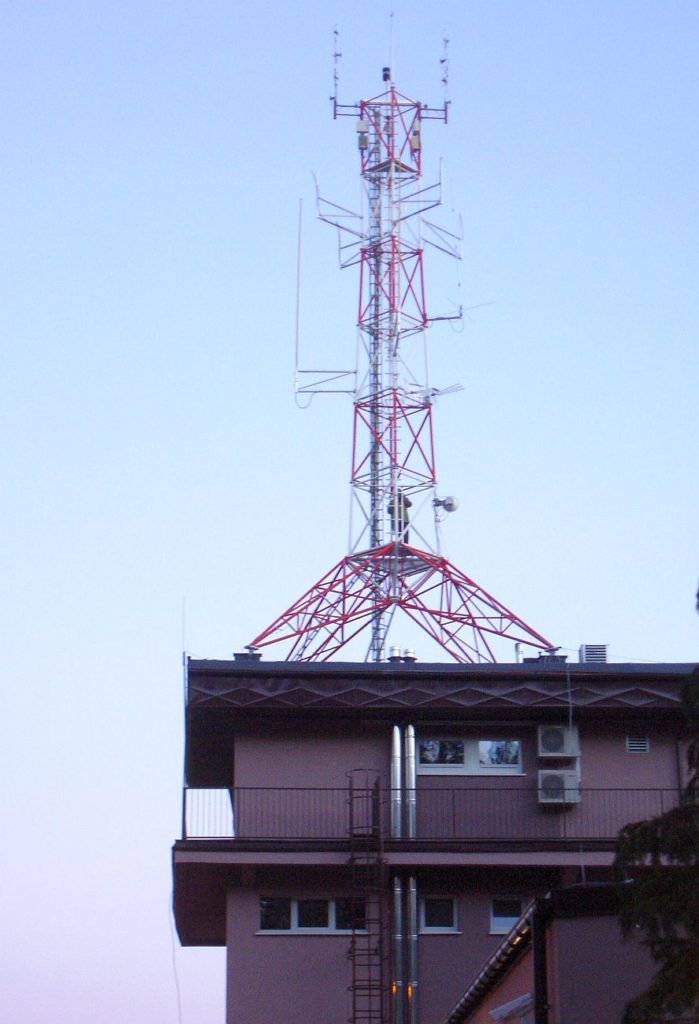

Projects and Photos
