Aluminum terrace drain OT-1 and OT-2
345,00 zł nettoprice as of April 25, 2024
Dariusz Wojciechowski, Eng.502 218 191Production and custom versions.
TECHNICAL DOCUMENTATION
Documents
- 1
- CAD
- in response to a request
- Access
- without a form
Description
The aluminum flanged terrace drain is intended for installation in the terrace screed layer. After sealing the concrete with waterproofing compounds, it ensures a durable and secure connection of the terrace/balcony structure with the drainage system. It eliminates the risk of leaking, which is usually an unreliable concrete/plastic connection that occurs with traditional system drains made of plastic. Temperature differences and freeze/thaw cycles cause the concrete to detach from the plastic, creating gaps through which water meanders deep into the terrace structure, emerging as streaks in the least expected places.
Odpływ tarasowy serii OT-1 (odpływ 50 mm)
- aluminium AW6082 – niska masa
- rozmiar misy/kołnierza 50x50 cm
- installation depth (structure height) 100 mm
- adapted to sewage pipes diameter 50 mm

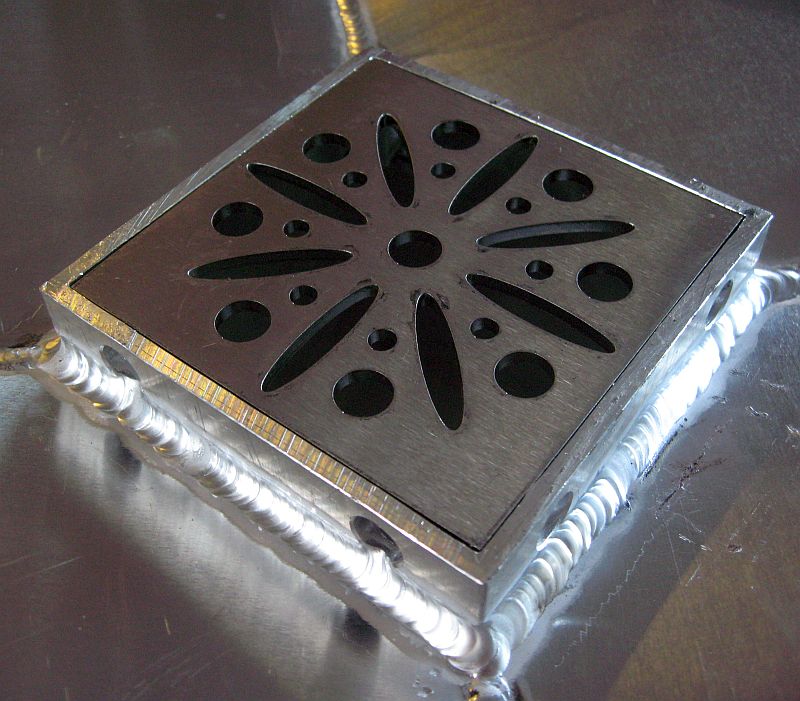

- w zestawie estetyczna kratka odpływowa 100x100 mm blacha nierdzewna 3 mm

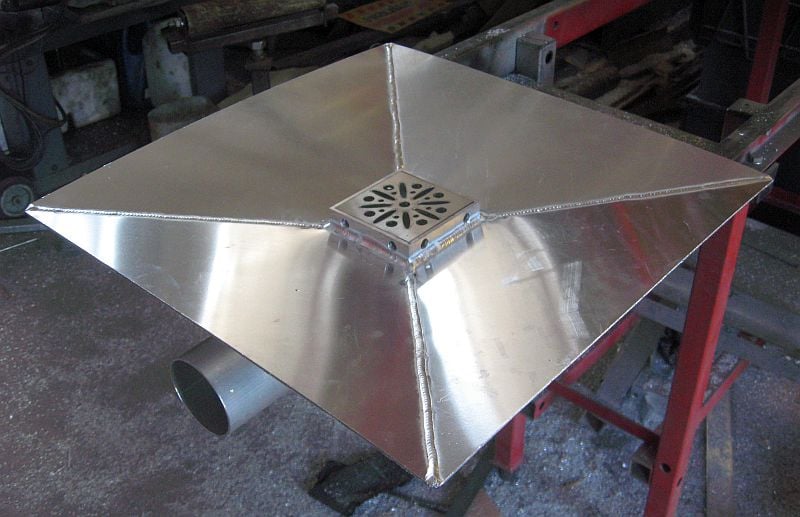

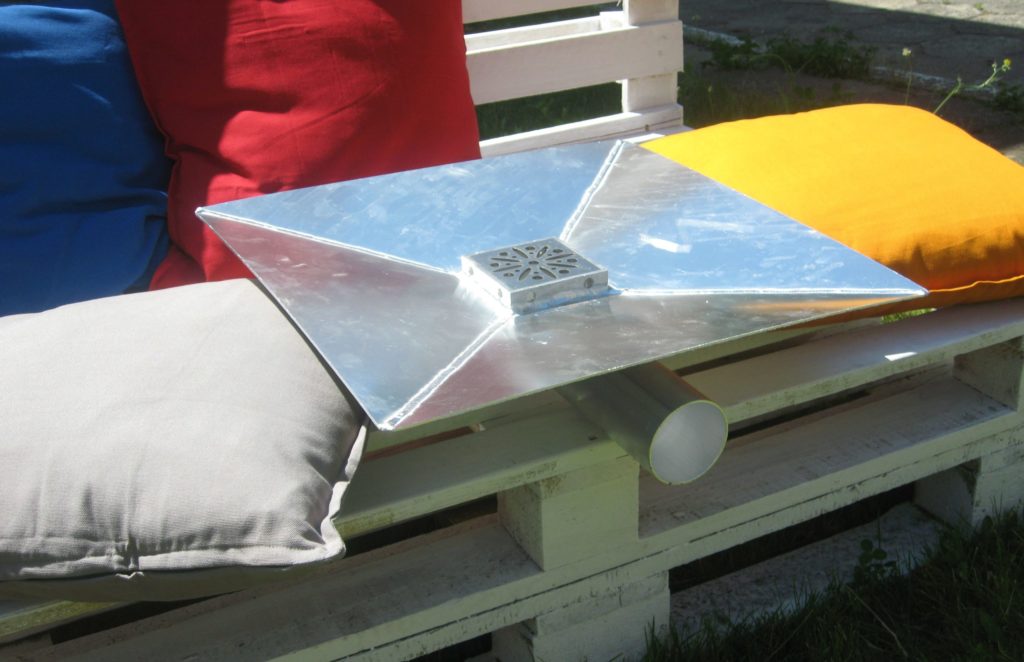

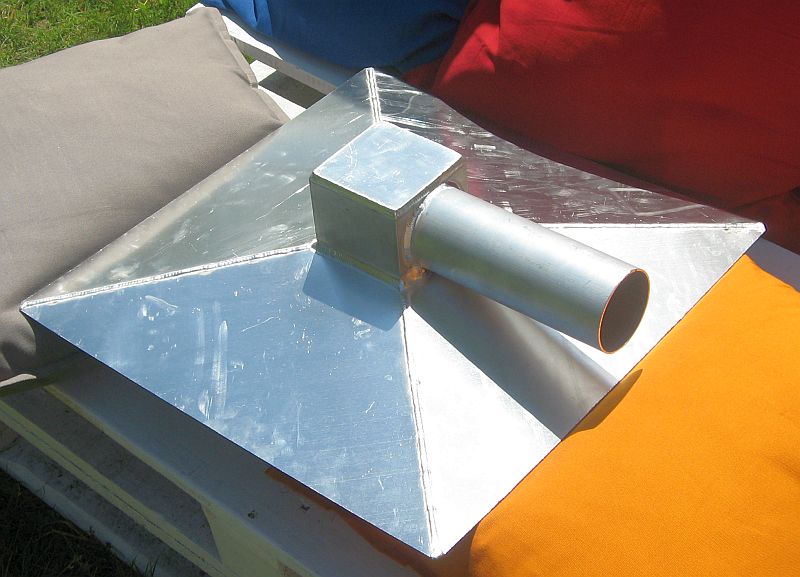

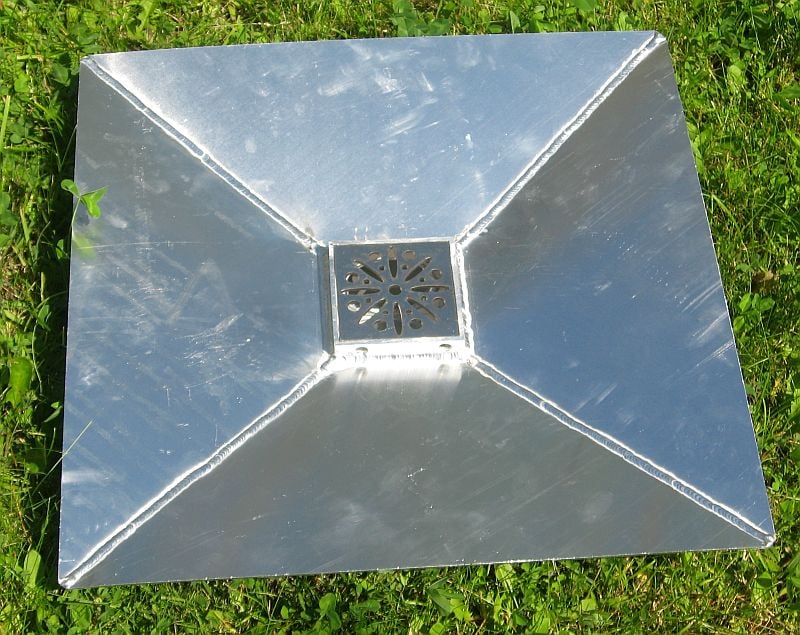

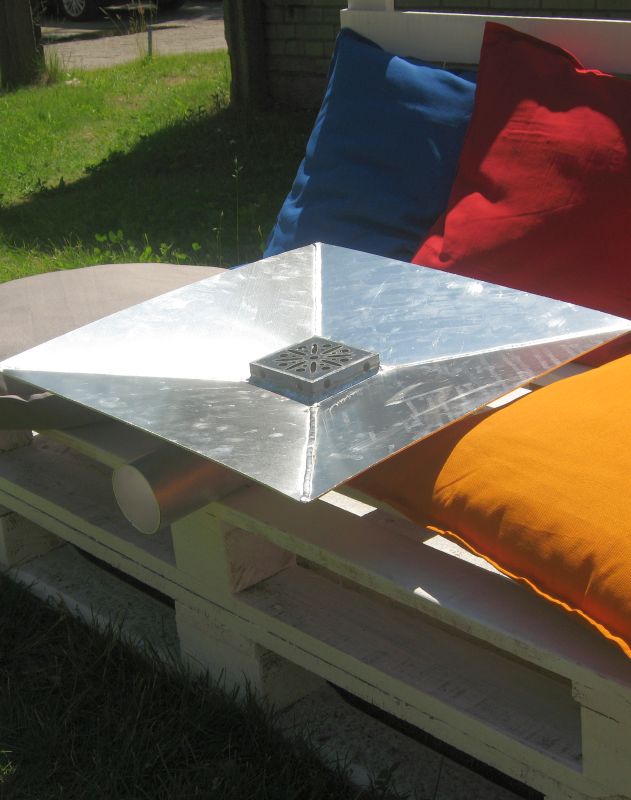

Odpływ tarasowy serii OT-2 (odpływ 75 mm)
- aluminium AW6082 – niska masa
- rozmiar misy/kołnierza 50x50 cm
- installation depth (structure height) 120 mm
- adapted to sewage pipes diameter 75 mm
- w zestawie estetyczna kratka odpływowa 100x100 mm blacha nierdzewna 3 mm
