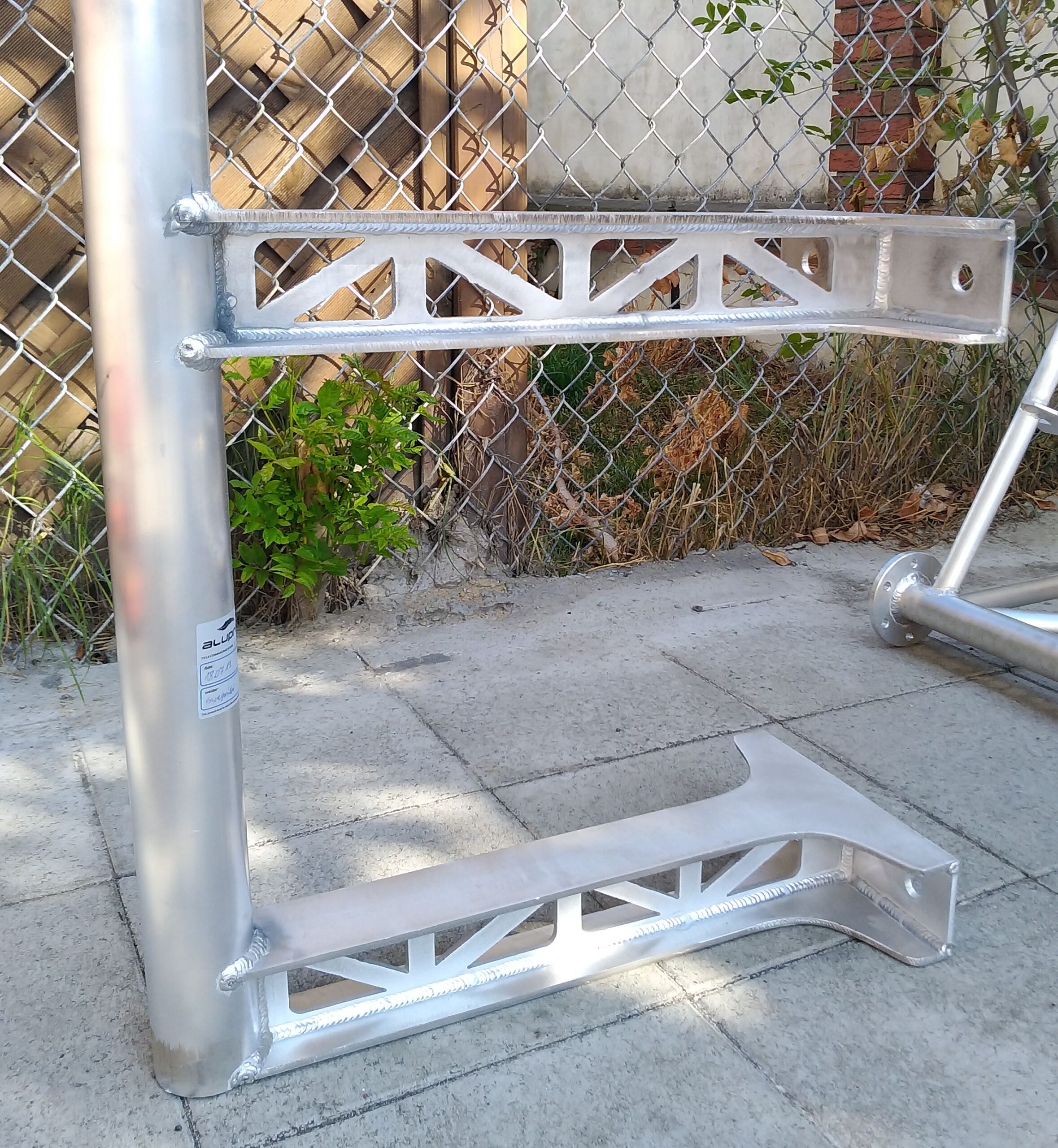

Wall-mounted tubular aluminum mast WP200-500A

Wall-mounted mast for heavy equipment.

1 875,00 zł nettoprice as of April 3, 2024

Ask about product selection 1Download the document ↓

Dariusz Wojciechowski, Eng.502 218 191Design selection and manufacturing. Let's start with the antennas: how many, what types, and at what height.

Technical Specifications

Weight - 11 kg
Height of the main pipe: 2 meters
Spacing between mounting points - 0.5 meters
Distance between the main pipe and the wall: 0.5 meters
Alu AW6082 and AW6063 material - main tube 70x5
Recommended Mounting - 4 x 16 mm diameter threaded rods embedded in the wall

TECHNICAL DOCUMENTATION

Documents

PDF: 1
CAD: in response to a request
Access: without a form

Report an error in the data

Description

Wall-mounted mast for heavy equipment. Maximum antenna area: 0.5 m². Enhanced wind resistance—recommended for small and medium-sized radio links and medium-sized panel antennas.

Projects and Photos
