Aluminum ballast tower large BST1000 24 to 36

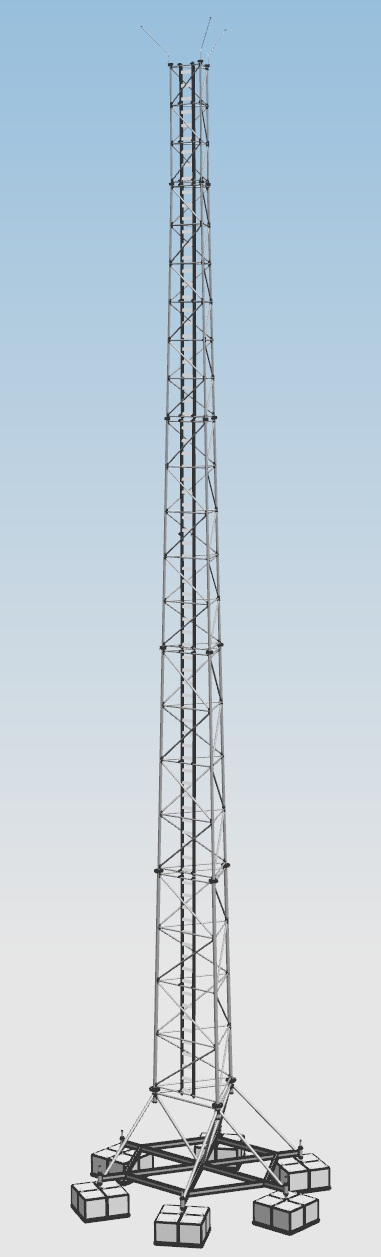

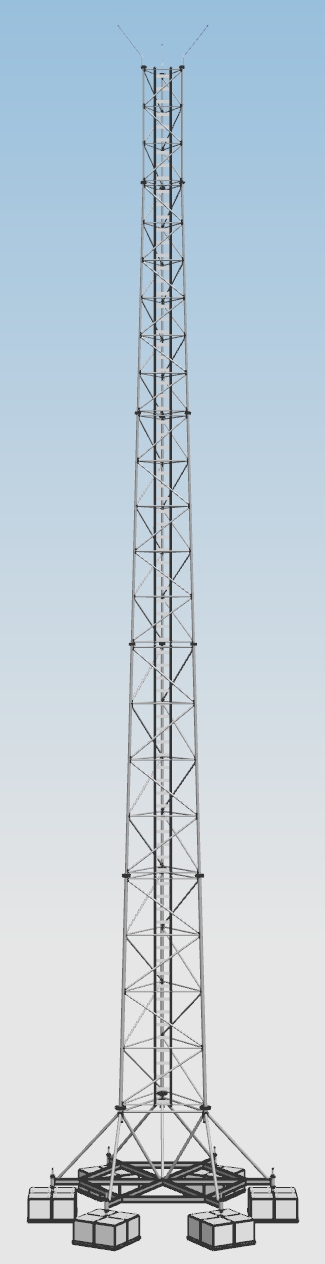

A ballast tower designed for large-scale artistic events (as a backup or to support the GSM system) can also be useful to public services in the event of local disasters, floods, to create an independent radio network in disaster-stricken areas or to temporarily expand existing systems. Despite its ground-free design, the tower has a fairly high load-bearing capacity for antennas (two square meters at the top). The relatively lightweight aluminum structure rises 30 meters above ground level—a highly sought-after height—allowing it, in most cases, to extend slightly above the treetops.

nettoprice as of March 29, 2024

Height

Clear

Add to quote

Ask about product selection 6Cards and drawings available for download ↓

Dariusz Wojciechowski, Eng.502 218 191Design selection and manufacturing. Let's start with the antennas: how many, what types, and at what height.

Technical Specifications

Key Specifications for the BST1000-30 Model

Height: 30 meters
Weight of aluminum structure: 480 kg
Ballast weight: 12 tons (prefabricated ballast blocks)
Material of construction: AW6082T6 supporting elements, AW6060 grating
Maximum wind load: 2m2
Characteristic wind speed: 25 m/s

TECHNICAL DOCUMENTATION

Documents

PDF: 6
CAD: in response to a request
Access: without a form

Report an error in the data

Description

A ballast tower designed for large-scale artistic events (as a backup or to supplement the GSM system) can also be useful to public services in the event of local disasters, floods, to create an independent radio network in disaster-stricken areas or to temporarily expand existing systems. Despite its ground-free design, the tower has a fairly high load-bearing capacity for antennas (two square meters at the top). The relatively lightweight aluminum structure rises 30 meters above ground level—a highly sought-after height—allowing it, in most cases, to rise slightly above the tree canopy.

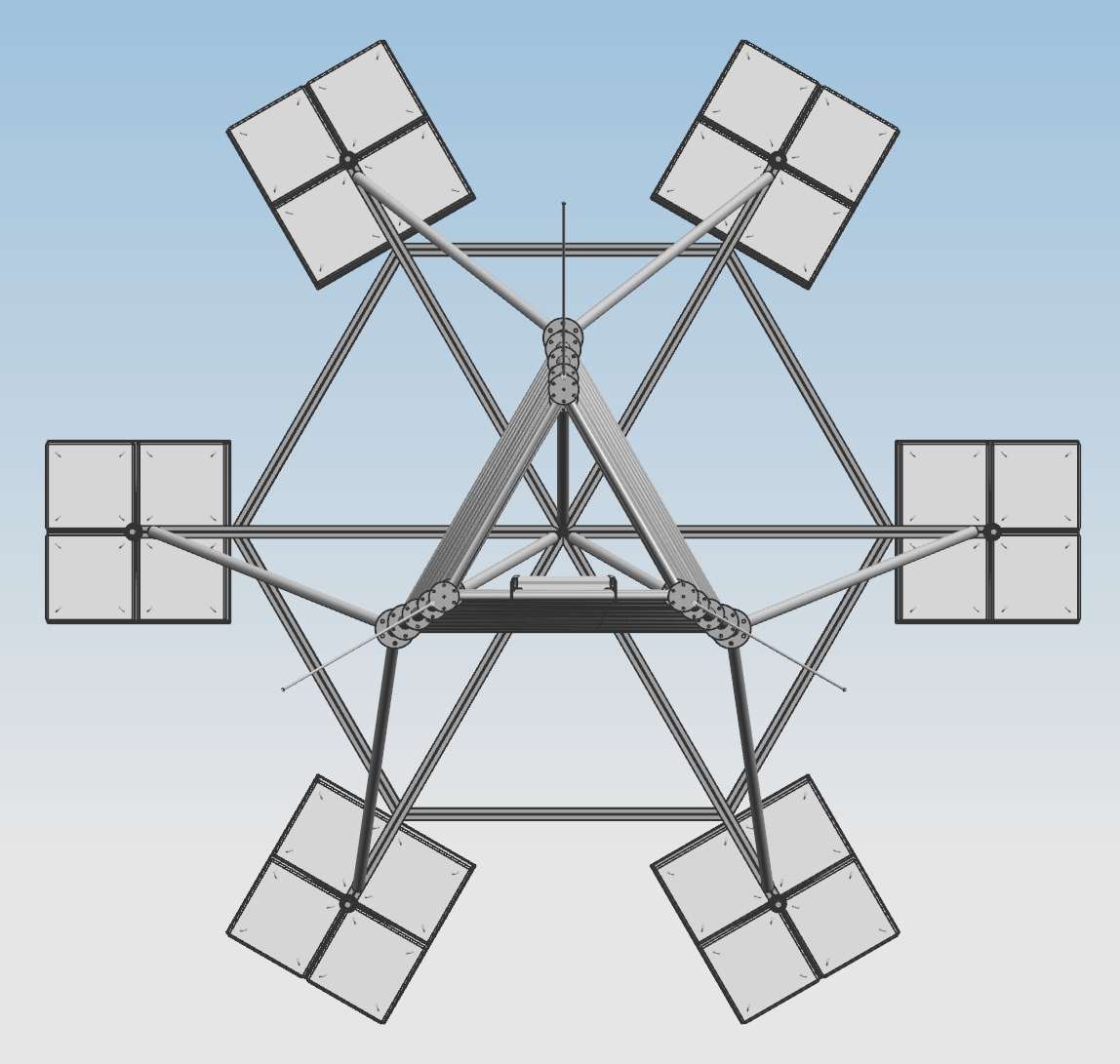

The ballast baskets are designed to facilitate their transport using small HDS-class cranes. The baskets also feature a built-in mechanism for tilting the tower within a range of +/- 10 degrees—however, we recommend leveling the ground beneath the tower. The required footprint for the tower is a circle with a diameter of 7 meters and an area of approximately 40 square meters.

Included in the set

Lightning rods x3 pieces
Entrance ladder along the entire length of the structure
Ballast frame x6 pieces
Set of screws (M10x30)
Vertical adjustment system
Note: Ballast is not included in the price; prefabrication is available upon request, or ballast baskets can be customized to accommodate the customer’s preferred ballast.
