Klamra włazowa naścienna regulowana SYDRA5001 / 1
SYDRA500 SKU SYD500KLAM

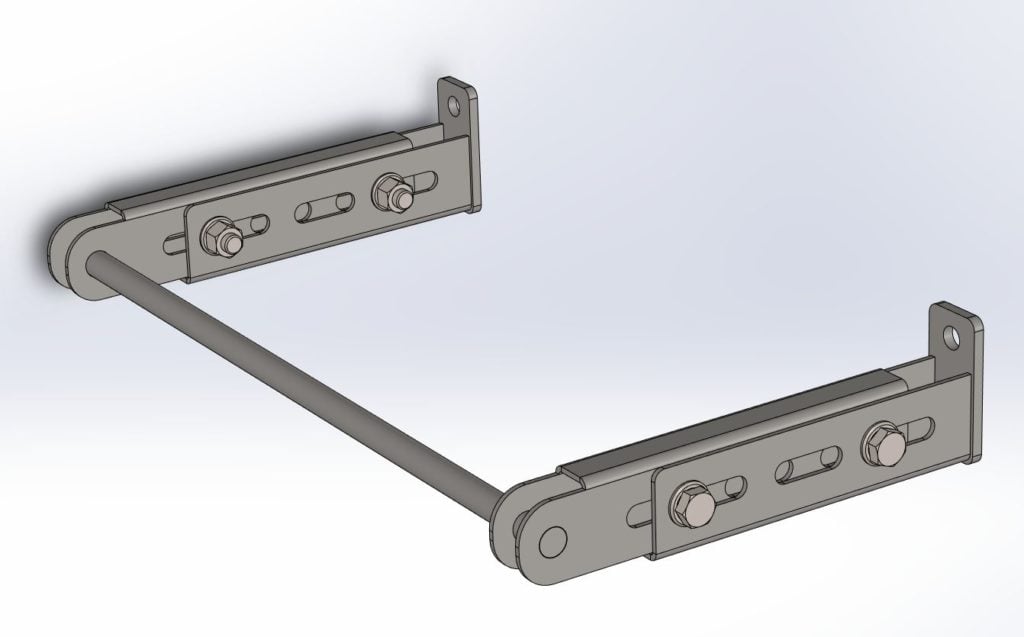

SYDRA500 adjustable wall manhole clamp

SYDRA500 system wall-mounted manhole frame with adjustable wall clearance of 200–350 mm (e.g.,

175,00 zł nettoprice as of April 25, 2024
Add to quote
Ask about the version or quantity 2Download the document ↓
Dariusz Wojciechowski, Eng.502 218 191Production and custom versions.

Technical Specifications

Specifications

  • adjustment range 200-350 mm from the wall surface (e.g. compensation of the thickness of external wall insulation)
  • rung made of rod fi 16 mm
  • material: galvanized steel, optionally stainless steel
  • Wall mounting: 2 threaded rods, 12 mm diameter—it is recommended to secure them using chemical anchors
  • Adjustment - 4 M12x50 screws, self-locking nuts
  • weight of the steel version 3.3 kg

Goes well with

Only relationships confirmed in the descriptions and catalog.

Includes

SYDRA500STSYDRA500 system base ladderSYDRA500 system components

TECHNICAL DOCUMENTATION

Documents

PDF
1
CAD
1
Access
without a form

Report an error in the data

Description

SYDRA500 system wall-mounted manhole cover bracket with adjustable clearance from the wall of 200–350 mm (e.g., to accommodate insulation thickness). Rung made of 16 mm diameter rod, galvanized or stainless steel, 3.3 kg; mounted with two 12 mm diameter threaded rods using chemical anchors.
