Smoke flap KD W100L140H50
Technical Specifications
Technical Specifications
- 12- or 24-V telescopic linear actuator, e.g., GRASL MCR W10A-750-2.5-OZ
- flap opening angle 110 degrees
- a flexible EPDM rubber gasket helps ensure the tightness of the closed flap
- aluminum door frame and hatch frame with corners welded for tightness
- structure of the flap elevation without protruding elements, which makes it easier to insulate or cover with roofing felt, made of galvanized DC01 sheet metal
- flap construction: variant with polycarbonate and sandwich panel available,
- flap size 1000 x 1400 mm (for an installation hole of this size)
- Weight: 76 kg – 149 kg, depending on the version
- Snow load class: 550 Pa
- Wind load class: 1500 Pa
- Reliability class: not less than 10,000 openings (according to the actuator manufacturer's data)
- Maximum snow cover: 200 mm (snow removal recommended)
- Reaction to fire: class A1 for steel sheets and B-s1 for cellular polycarbonate
Goes well with
Only relationships confirmed in the descriptions and catalog.
TECHNICAL DOCUMENTATION
Documents
- 1
- CAD
- in response to a request
- Access
- without a form
Description
The KD W100L140H50 Smoke Damper is used for automatic smoke removal from rooms in public buildings, schools, production halls and offices.

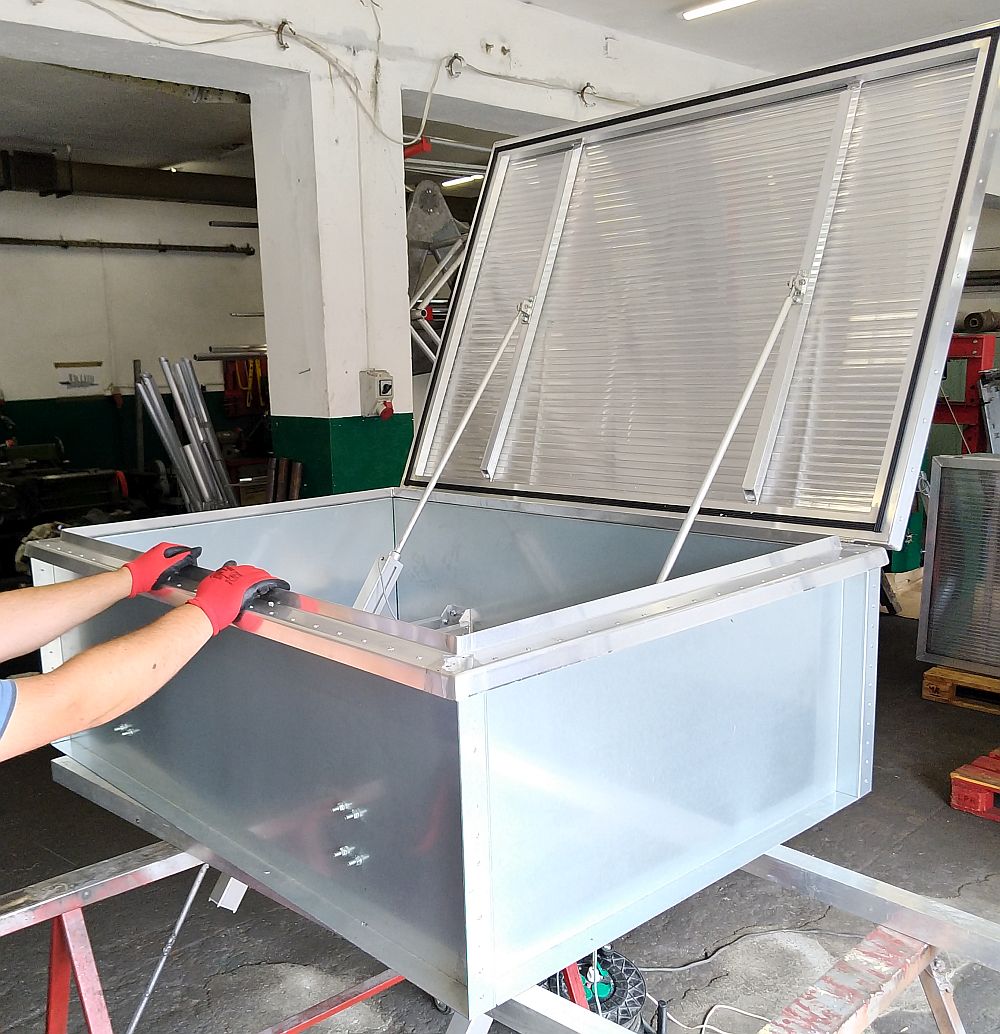

The KD W100L140H50 hatch is a medium-sized hatch in the AluPro product line. It is made of galvanized steel sheet, aluminum profiles, and multiwall polycarbonate. The control actuator is available in 12-volt and 24-volt versions—the model is selected according to the technical specifications of the order. The product can be customized to meet the individual requirements of the designer or client regarding the size, height, and covering material of the skylight. Made to order; production time is approximately 4 weeks. One or two motors can be used. Note: The price listed is for a polycarbonate hatch with a single actuator. Please inquire about pricing for a version tailored to your needs.
