Thanks to its industrial appearance, the pole works great in parking lots, modern housing estates, and in the maneuvering areas of modern companies. Works with any fixture with a tubular end (pipe-to-pipe, locking with a screw or U-bolt clamp). When ordering, please provide the expected spigot diameter - the pole will be adjusted to mount the selected fixture. The frame in the visualization is an example and is not included in the set. It is possible to order a visualization of the pole with the frame of your choice - we provide 3D files for the needs of renderings of architectural offices. Suggested foundation – concrete block 0.5×0.5×1.2 meters + glued M12 pins (chemical anchor). The power supply for the lamp can be supplied through the truss curb pipe.
Technical parameters:
- pole height 5 meters
- truss width 250 mm,
- distance between the pole grating and the fixture mounting point: 600 mm
- pole mass 21 kg
- foundation grate - Flange connection fi 126 mm, thickness 10 mm, 3 holes
- aluminum AW6082, support pipe 35×2, grating 20×2
- the set includes connecting screws for the bent element
- connection of a straight column with an arched one on a flange connection fi 94 mm, 6 mm thick, 6 holes, M8 screw
- finish: raw aluminum
- rAL powder painting possible, additional fee PLN 190
Multimedia:
Applications of the M250-5LUK Pole

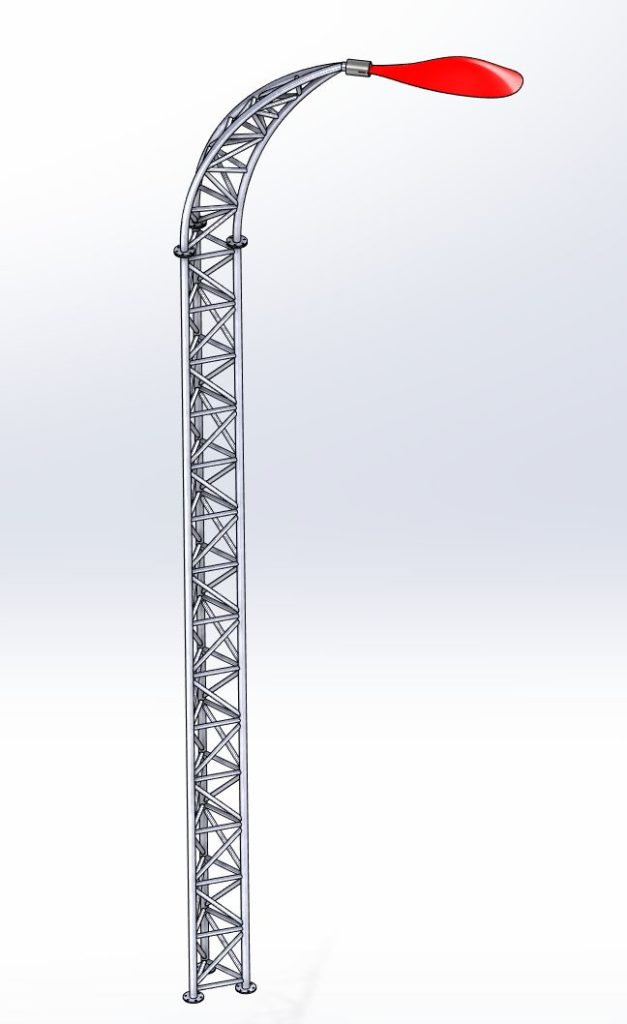

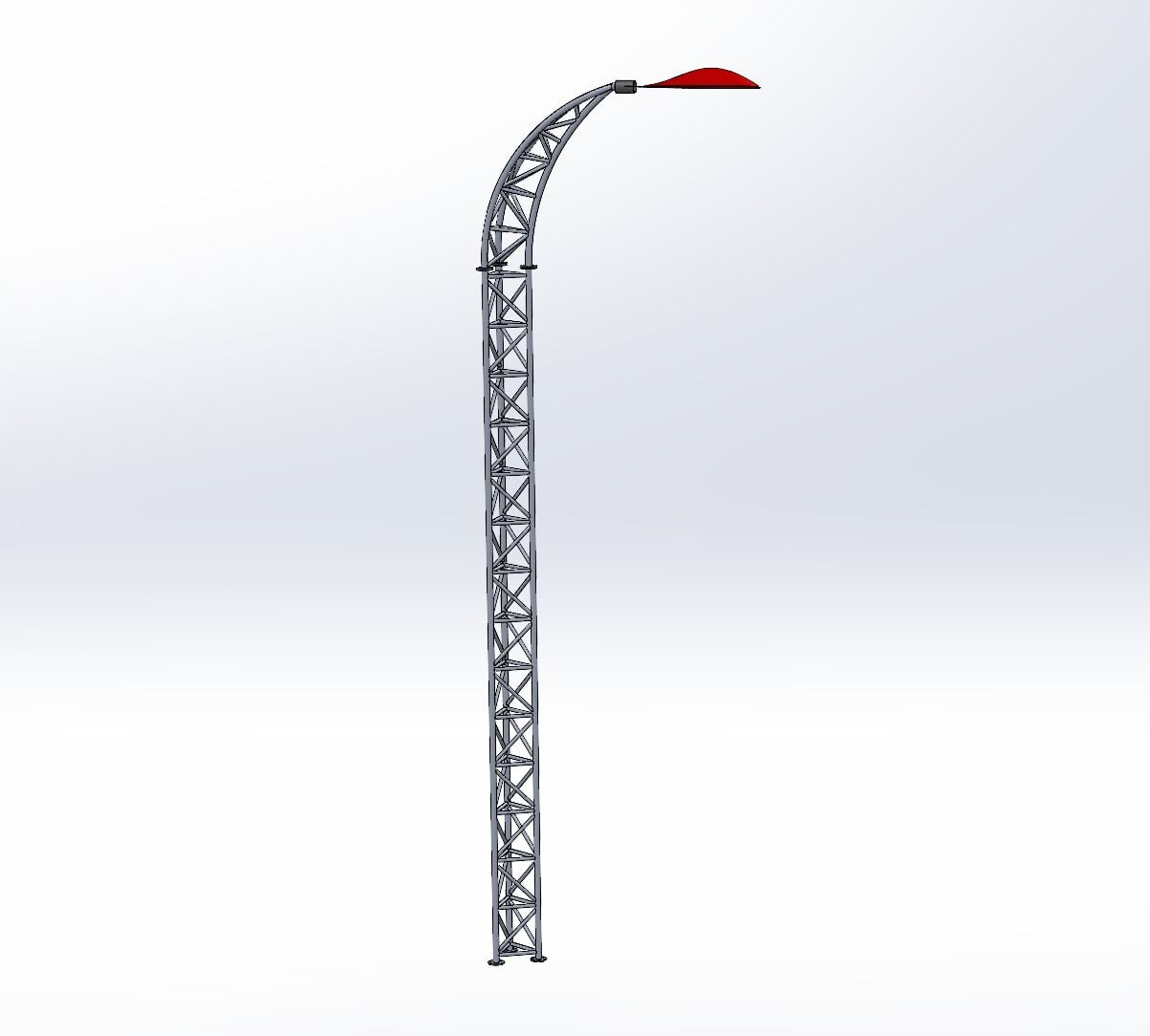

The M250-5LUK light pole is a 5-meter-tall aluminum lattice structure topped with a 1-meter arch—an industrial design with a light, slender form. It’s ideal for any location requiring spot LED lighting with lightweight infrastructure and quick installation.
- Parking Lots and Maneuvering Areas – Its low weight (21 kg) makes it easy to transport and set up on construction sites or temporary staging areas.
- Modern residential developments – The slender aluminum lattice complements the aesthetic of contemporary buildings; available in raw aluminum or RAL colors.
- Internal roads and sidewalks – The curved end directs the light at an angle that is optimal for the sidewalk or roadway.
- Industrial and logistics sites – AW6082 aluminum = no corrosion without additional protection; no need for touch-up painting.
Key technical features

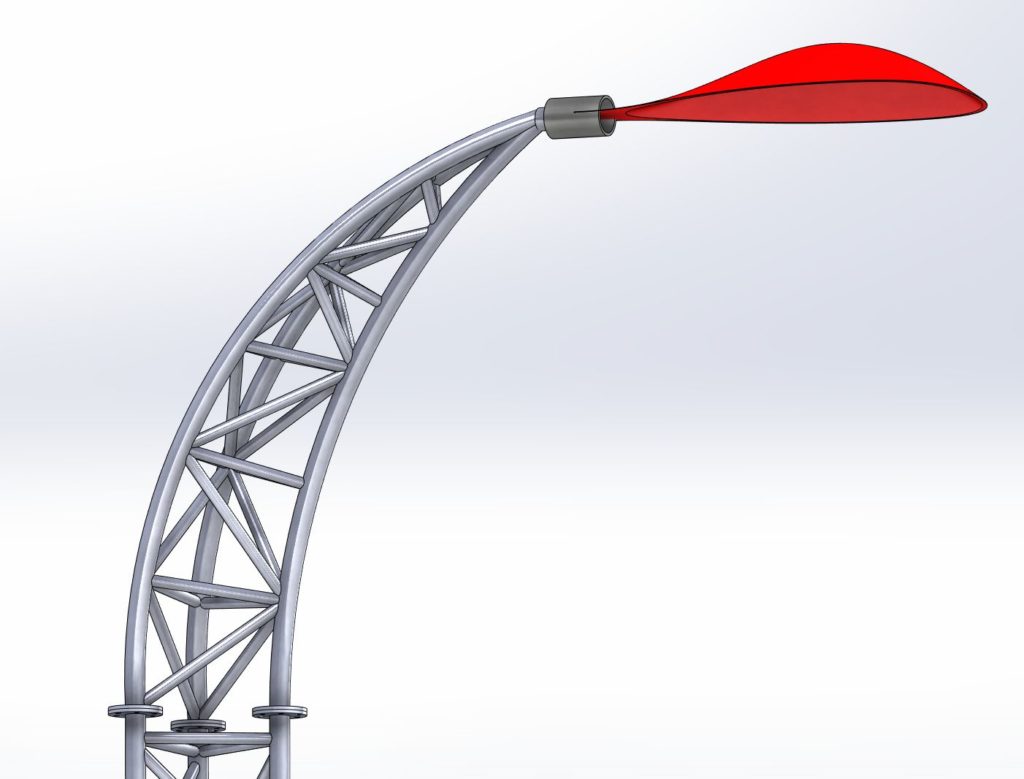

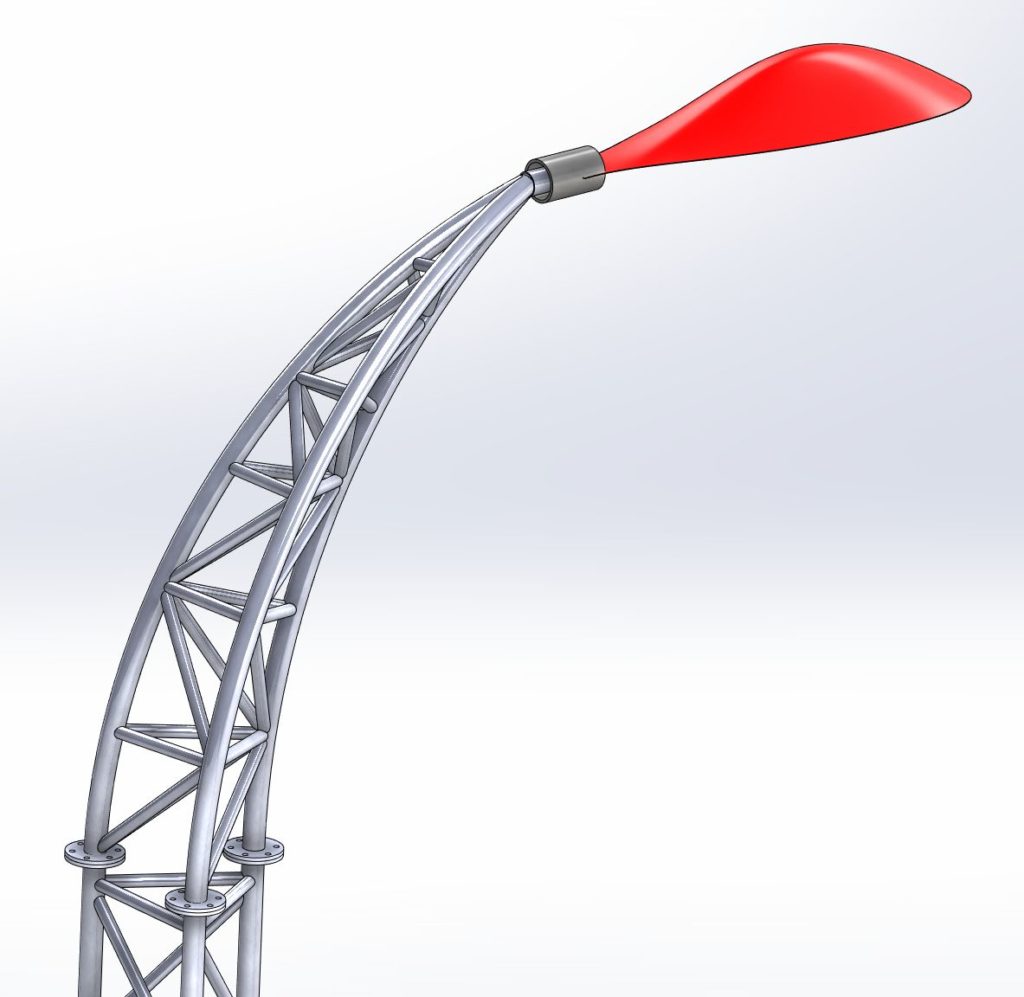

- 1-meter arched End cap (LUK) – The curved section allows the luminaire to be angled without the need for an extension arm; glare can be reduced.
- AW6082 Aluminum – a 6xxx series alloy with high mechanical strength and corrosion resistance; does not require a protective coating.
- Total weight: 21 kg – a lightweight pole that can be installed by two people without heavy equipment.
- Flanges: 126 Mm diameter (base) · 94 Mm diameter (curve) – Standard 3- and 6-hole spacing; quick installation of the base and arch on the construction site.
- Support tube 35×2, mesh 20×2 – through-type cable ladder; no external cable conduits.
Frequently Asked Questions (FAQ)
Which LED fixtures are compatible with the M250-5LUK?
The pole is compatible with fixtures that have a tubular end (tube-in-tube) — when placing your order, please specify the expected diameter of the fixture’s connector. AluPro will customize the pole for your specific model.
Doesn't an aluminum pole need to be painted?
No. AW6082 aluminum does not corrode when exposed to the elements. The standard finish is bare aluminum; RAL powder coating is available at an additional cost—primarily for aesthetic reasons.
How do you install the M250-5LUK?
The recommended foundation is a 1×0.5×1.2 m concrete block with M12 bolts embedded using chemical anchors. If the soil has low bearing capacity or is waterlogged, consult a local architect regarding the foundation design.
