Lighting Gate 2 x MKZ5025-6
Technical parameters:
- pole height 6 meters
- number of poles in the set: 2
- truss width at the base 500 mm,
- truss width at the top 250 mm,
- pole mass 45 kg
- foundation grate - Flange connection fi 126 mm, thickness 10 mm, 3 holes
- aluminum AW6082, support pipe 60×3, grating 30×3
- finish: raw aluminum
- rAL powder painting possible, additional fee PLN 210
- the set includes a 6 mm stainless steel rope, stainless steel rope clamps and turnbuckles for adjusting the pretension of the ropes
Multimedia:
price update 2019-06-22
Applications of the 2×MKZ5025-6 Lighting Gateway

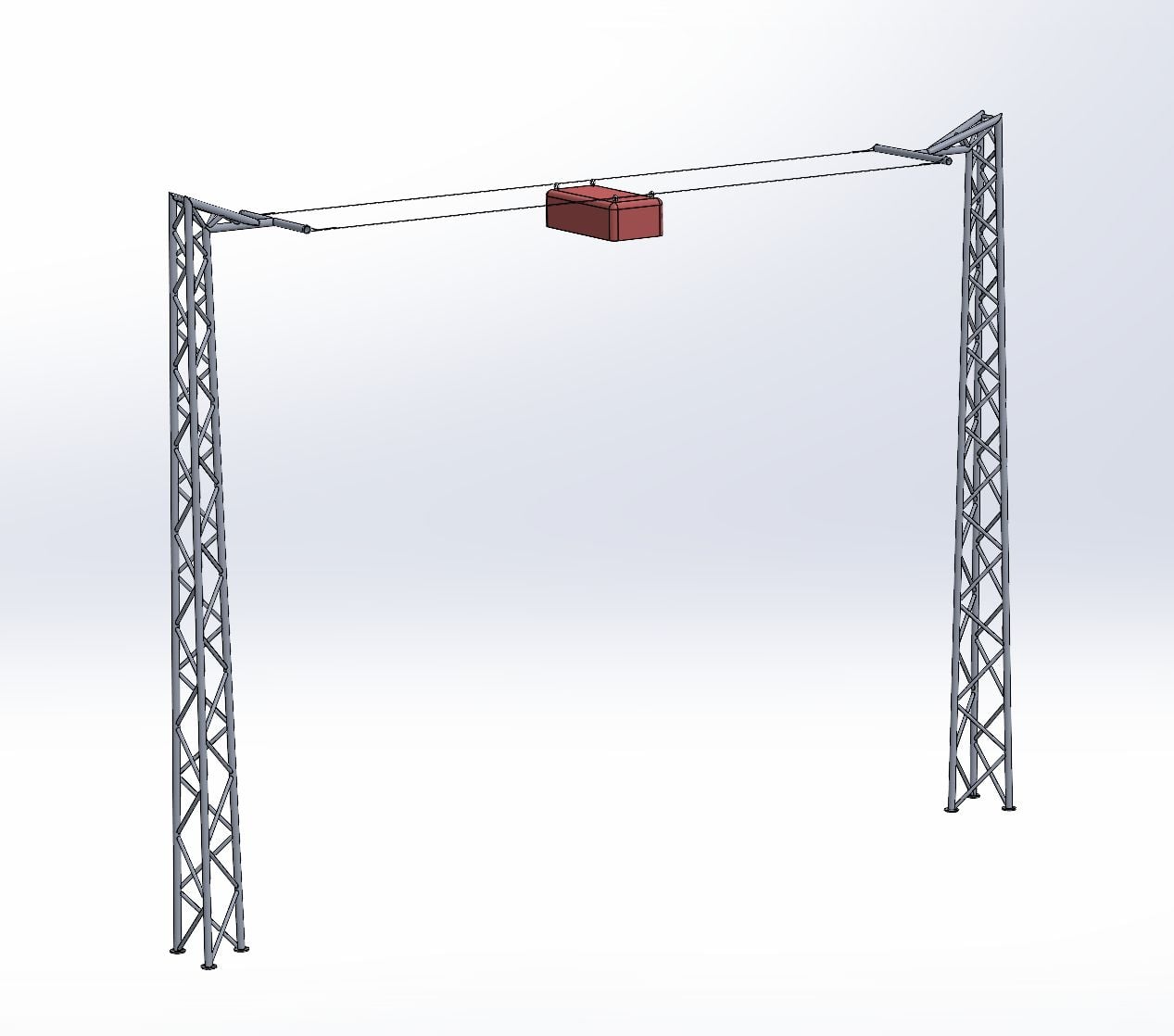

The 2×MKZ5025-6 Lighting Arch is a set of two MKZ5025-6 tapered aluminum posts (6 m) connected by a 6 mm diameter stainless steel cable. The cable is tensioned using turnbuckles and stainless steel cable clamps, forming a horizontal beam on which lighting fixtures can be suspended—creating an entrance arch over a road, alley, or service road.
- Entrance gates and driveways – Two poles on either side of the road, with a cable supporting LED fixtures, replace truss gantries—a lighter and less expensive solution for lanes up to 12 meters wide.
- Parking Zone Markings and Parking Lanes – An illuminated gate visually marks the entry zone or parking section without the need to build intermediate foundations.
- Festival and event venues – Two posts included, ready for quick assembly and disassembly; the tension-adjustable rope adapts to different road widths (turnbuckles).
- Internal roads at industrial facilities – Convergent aluminum truss structure resistant to vibrations from heavy vehicles; no corrosion in chemically aggressive environments.
Key technical features
- Complete set of 2 poles + rope – includes a 6 mm diameter stainless Steel cable, stainless steel cable clamps, and turnbuckles for adjusting the pre-tension; ready for installation.
- Tapered profile 500 → 250 mm · 6 m – a wide base for stability when the horizontal cable is under tension; the torsional rigidity of the truss minimizes the swaying of the pole in the wind.
- 6 mm stainless steel rope + stainless steel clamps – resistant to atmospheric and salt corrosion; preload adjustable with turnbuckles without the need for specialized tools.
- AW6082 Aluminum · 60×3 Tube – the tallest tube profile in the MKZ series; horizontal load capacity for fixtures suspended from a cable: up to approx. 15 kg.
- RAL Powder coating – an additional charge of 210 PLN per set; raw aluminum does not require a protective coating.
Frequently Asked Questions (FAQ)
How many light fixtures can be hung on a line?
A 6 mm diameter stainless steel cable, when pre-tensioned using turnbuckles, can support several kilograms. Typical 50–150 W LED streetlights weigh 3–8 kg. If you plan to suspend more than 3 fixtures, please consult us regarding the load capacity—we can reinforce the cable or recommend using two parallel cables.
At what road width does the gate work effectively?
The spacing between the posts can be specified as desired when placing an order. A 6 mm diameter stainless steel cable has optimal deflection for spans of up to approximately 10–12 m. For wider openings, a thicker cable or an intermediate post may be used.
Does the gate require a building permit?
Two separate lighting poles with a cable require individual consultation with an architect or the local municipality—regulations vary depending on the location and installation specifications. AluPro provides complete technical documentation for the permit upon request.
